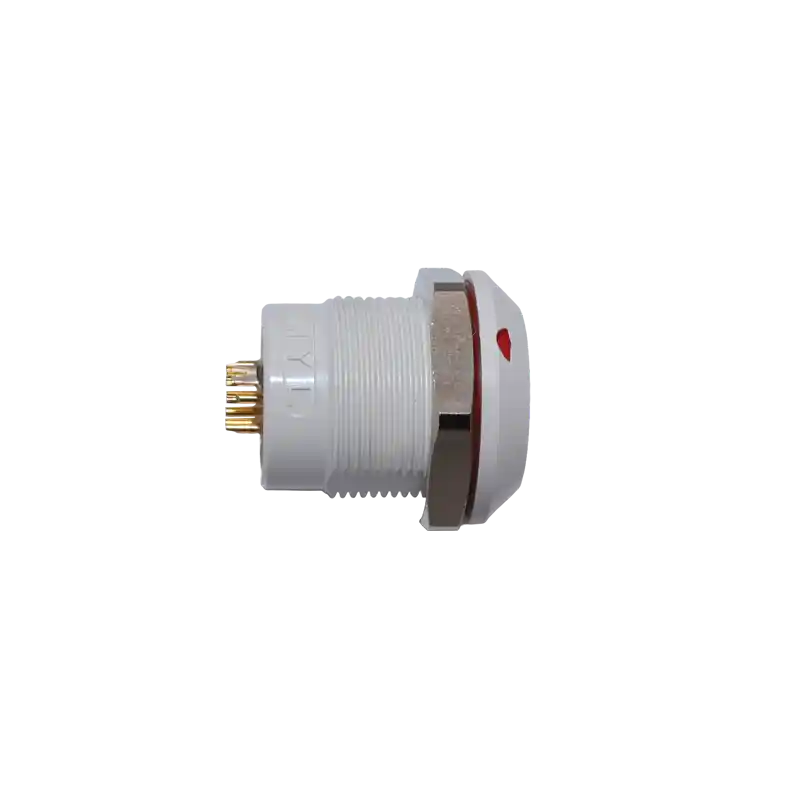

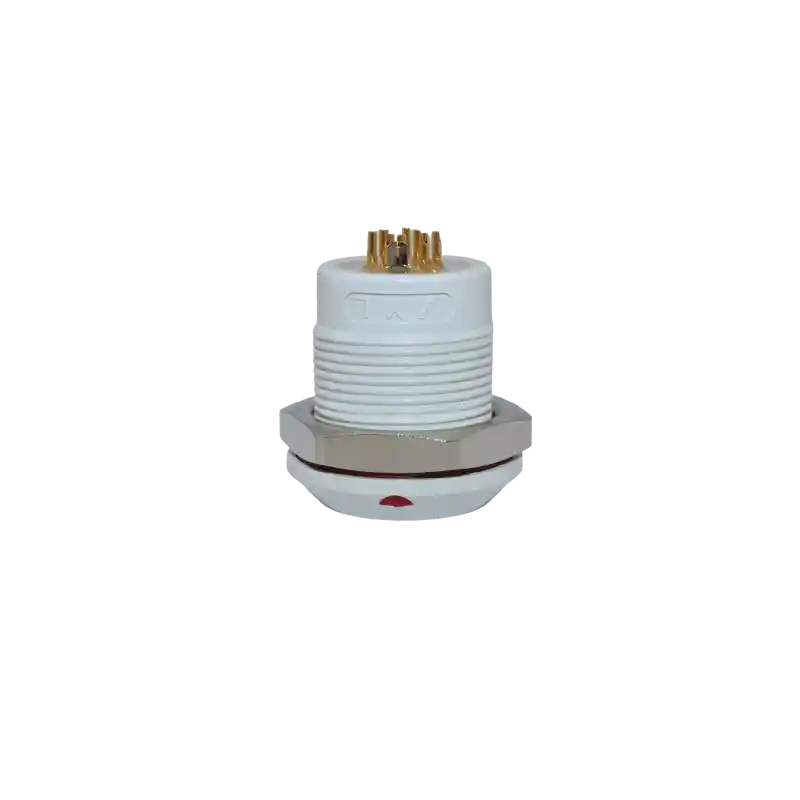

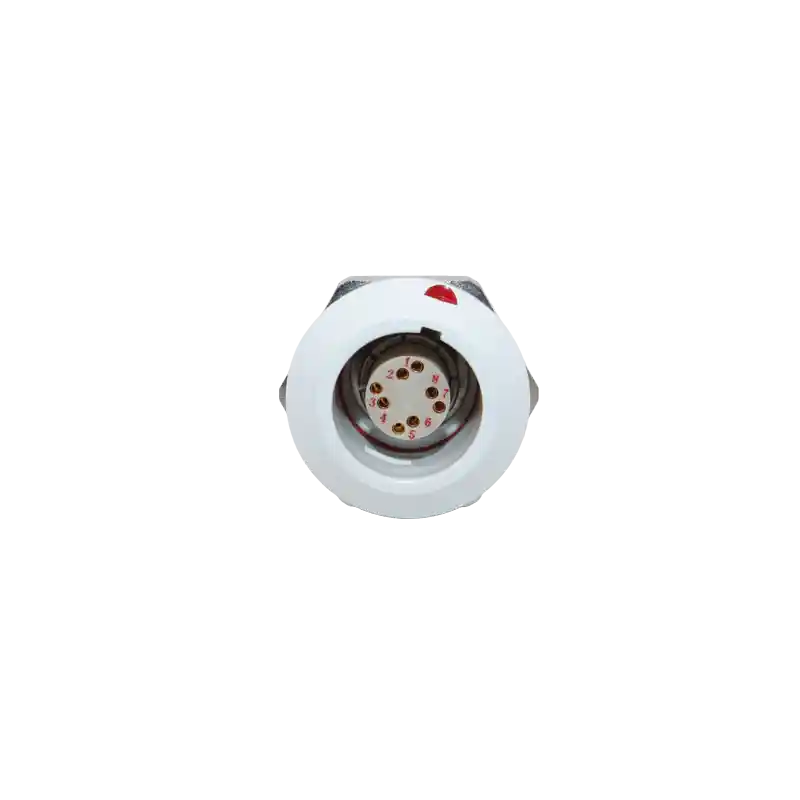

MG内螺母固定插座

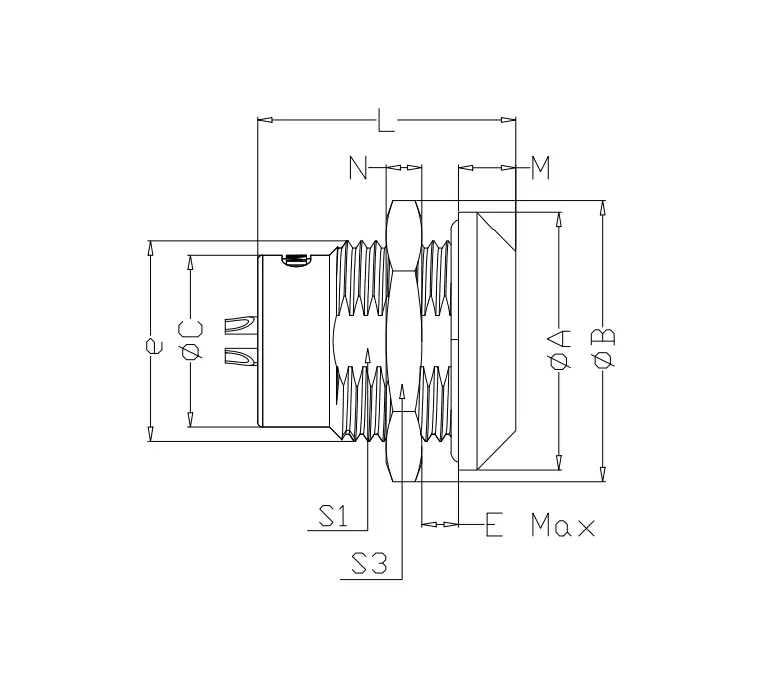

| 项目 | 尺寸 | ||||||||||
| 系列 | 型号 | A | B | C | e | E | L | M | N | S1 | S3 |
| 0KP | MGG | 18 | 19.2 | 12 | M14*1 | 5.5 | 18 | 4 | 2.5 | 12.5 | 17 |
| 1KP | MGG | 20 | 21.5 | 14 | M16*1 | 9 | 24.5 | 4.5 | 3 | 14.5 | 19 |
| 2KP | MGG | 25 | 27 | 18 | M20*1 | 9 | 25 | 5 | 4 | 18.5 | 24 |
| 3KP | MGG | 31 | 34 | 22 | M24*1 | 12 | 31 | 6 | 5 | 22.5 | 30 |
| 4KP | MGG | 37 | 40 | 27 | M30*1 | 13 | 34.5 | 6.5 | 5.5 | 28.5 | 36 |
