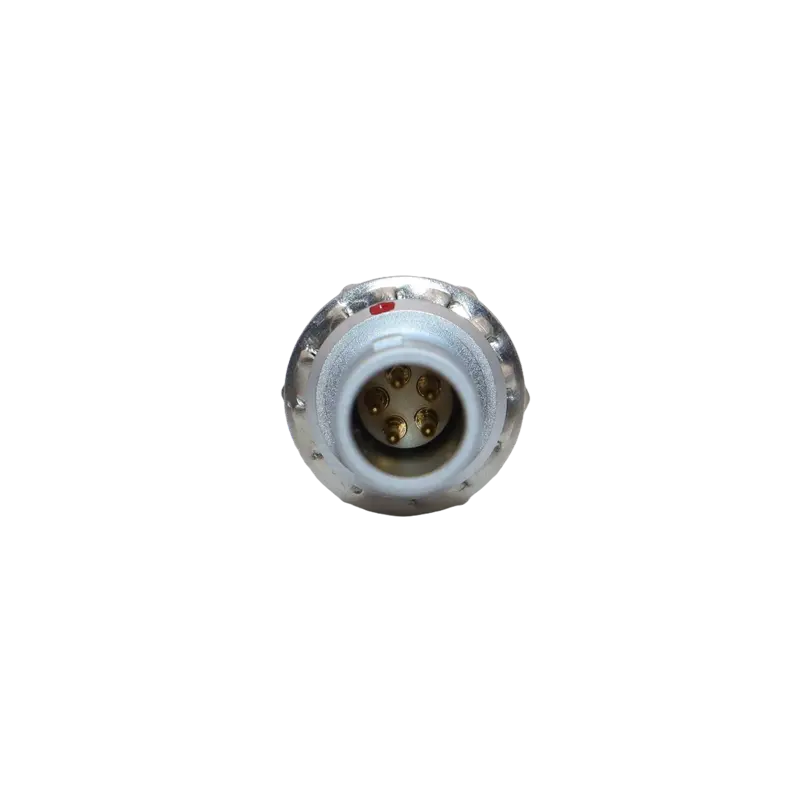

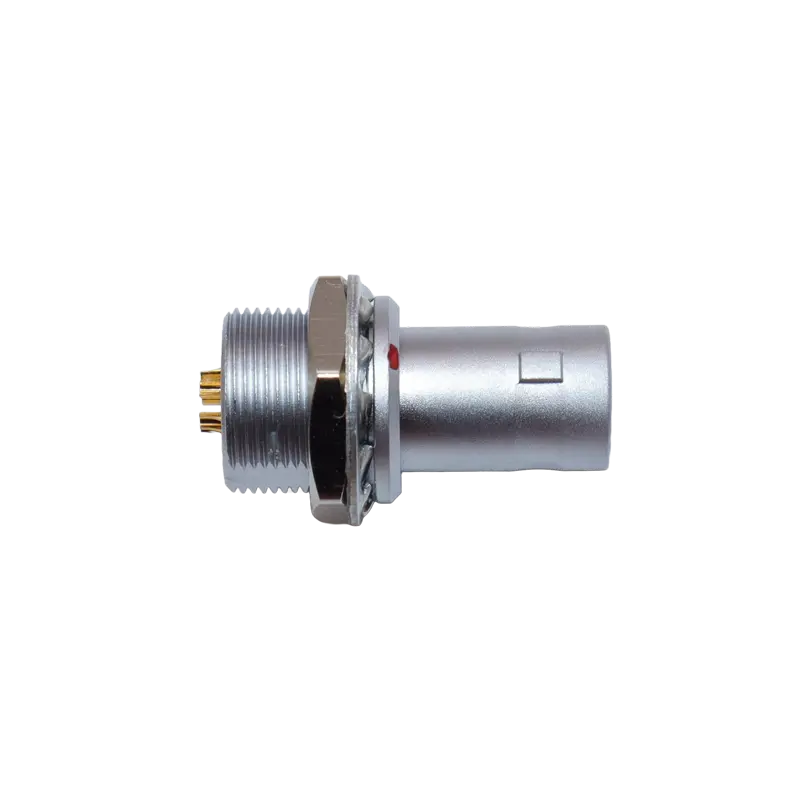

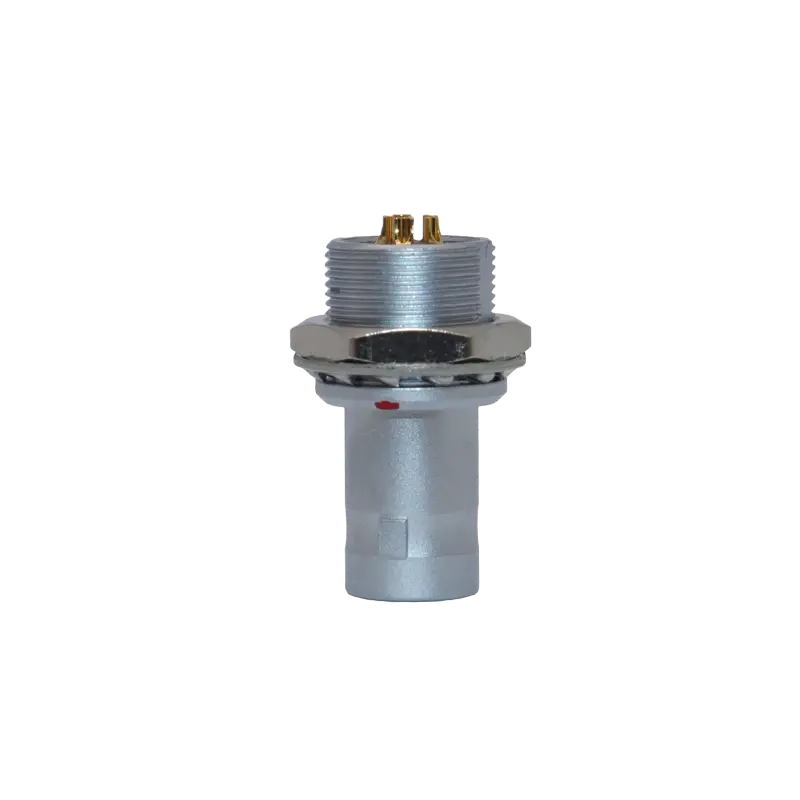

TA内螺母固定插头

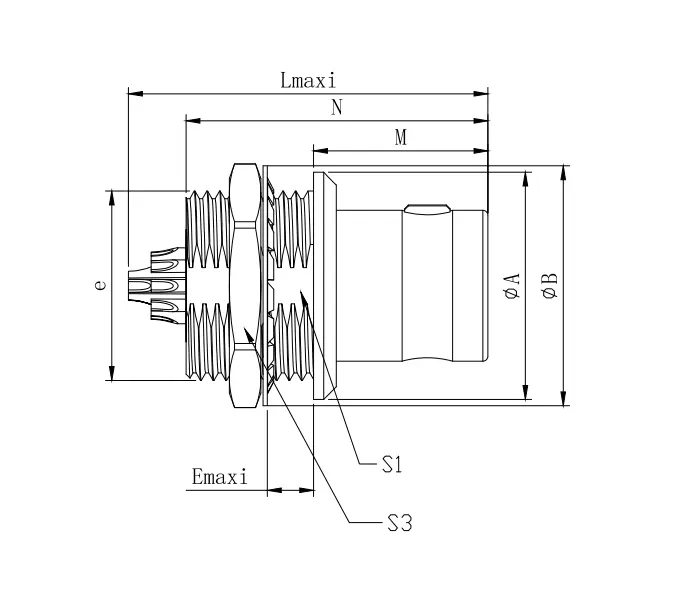

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 | S3 |
| 0B | TAG | 10 | 12.4 | M9x0.5 | 4.2 | 20.8 | 11.2 | 18.9 | 8.1 | 11 |
| 1B | TAG | 14 | 15.8 | M12x1.0 | 5.4 | 25.2 | 12.5 | 21.6 | 10.5 | 14 |
| 2B | TAG | 18 | 19.3 | M15x1.0 | 6.0 | 28.7 | 13.8 | 23.9 | 13.5 | 17 |
| 3B | TAG | 22 | 25.0 | M18x1.0 | 5.8 | 32.1 | 17.0 | 30.2 | 16.5 | 22 |
| 4B | TAG | 29 | 34.0 | M25X1.0 | 7.0 | 37.0 | 20.5 | 34.7 | 23.5 | 30 |
