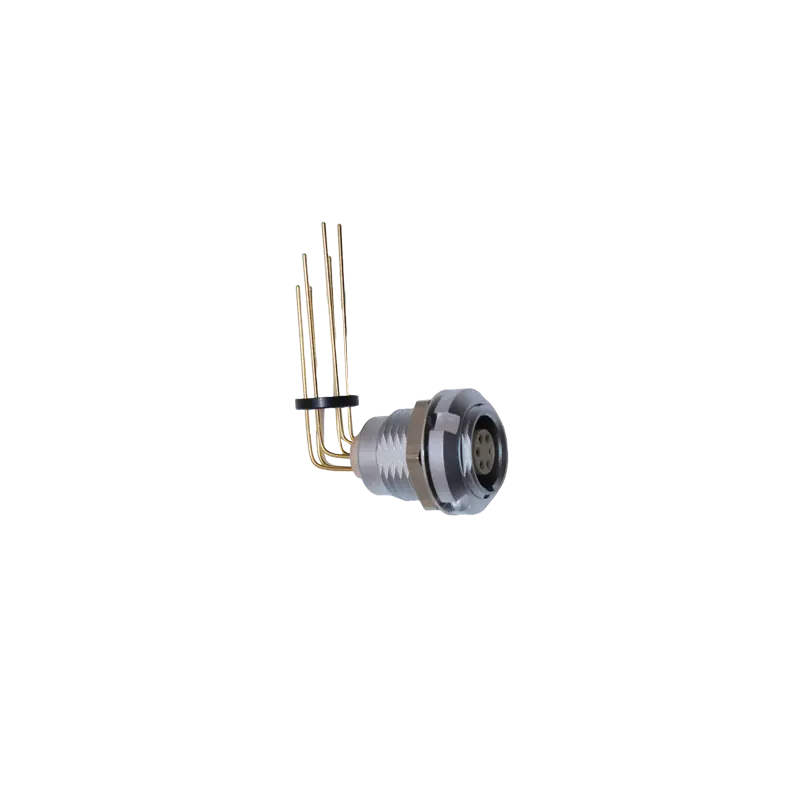

ZC双螺母固定插座

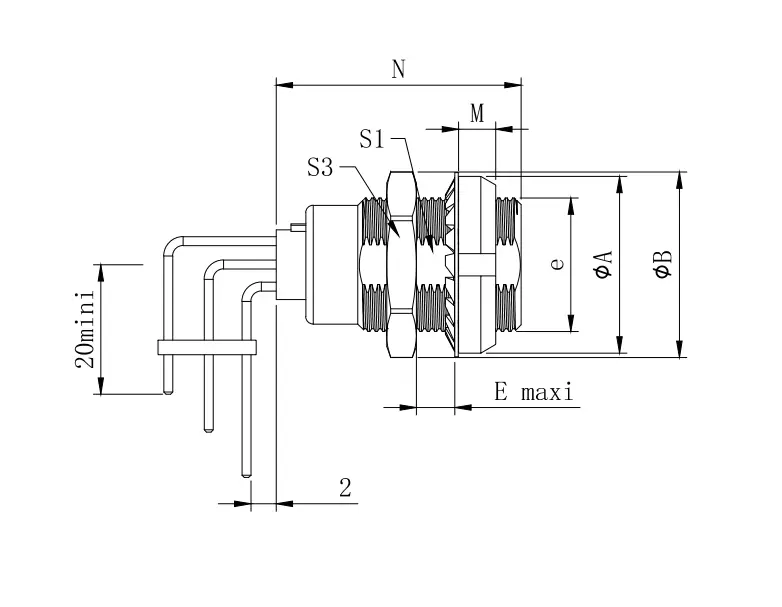

| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | M | N | S1 | S3 |
| 00B | ZCG | 10 | 11.0 | M7x0.5 | 4.5 | 2.5 | 13.7 | 6.3 | 9 |
| 0B | ZCG | 12 | 12.4 | M9x0.5 | 5.5 | 2.5 | 16.5 | 8.2 | 11 |
| 1B | ZCG | 16 | 15.8 | M12x1.0 | 6.0 | 3.5 | 18.8 | 10.5 | 14 |
| 2B | ZCG | 20 | 19.2 | M15x1.0 | 6.5 | 3.5 | 19.8 | 13.5 | 17 |
| 3B | ZCG | 24 | 25.0 | M18x1.0 | 9.0 | 4.5 | 25.0 | 16.5 | 22 |
| 4B | ZCG | 30 | 34.0 | M25x1.0 | 10.0 | 4.5 | 34.0 | 23.5 | 30 |
