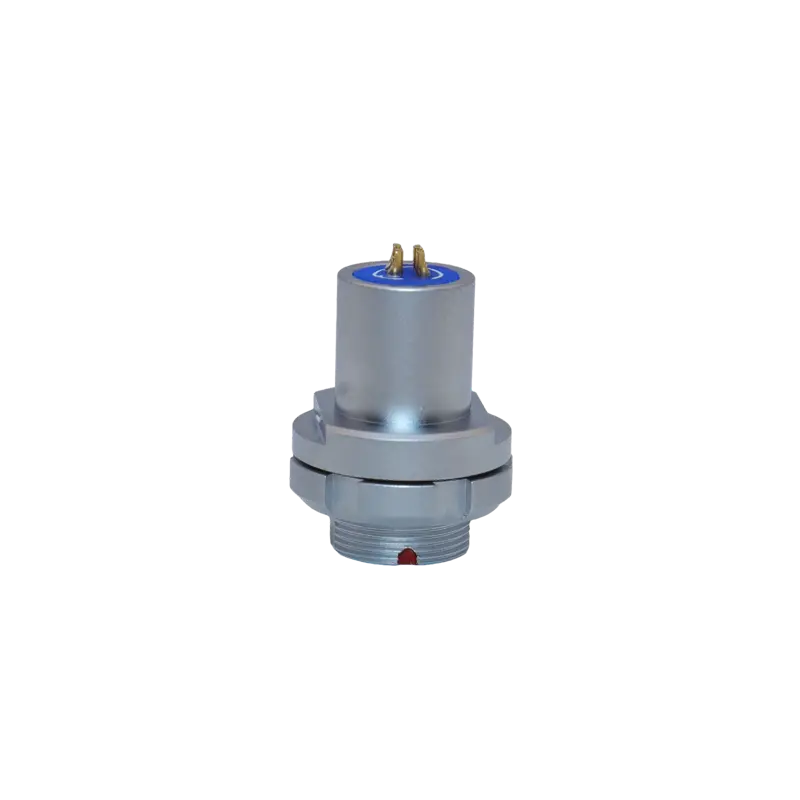

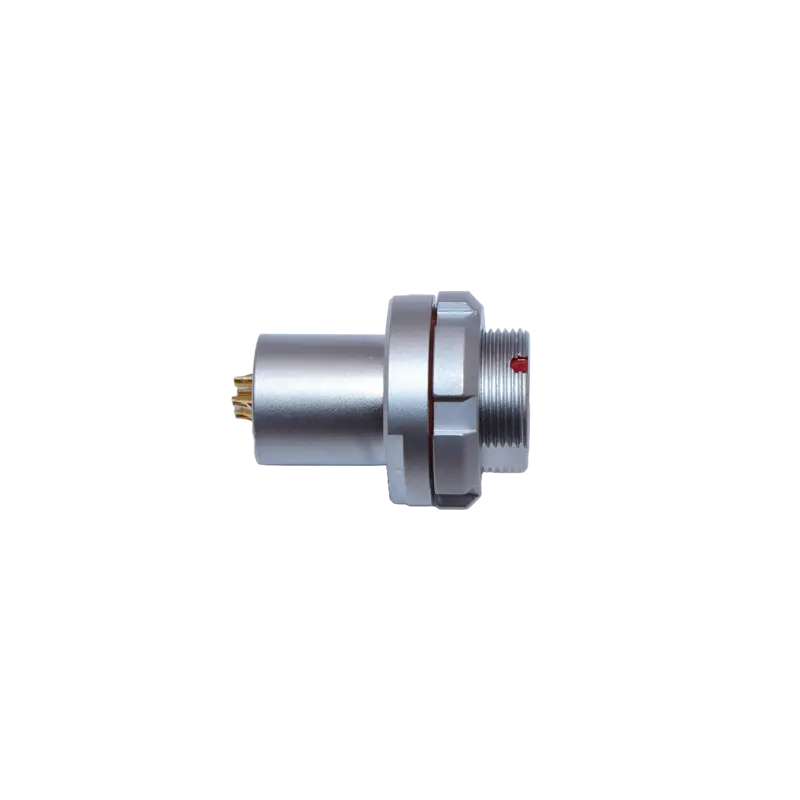

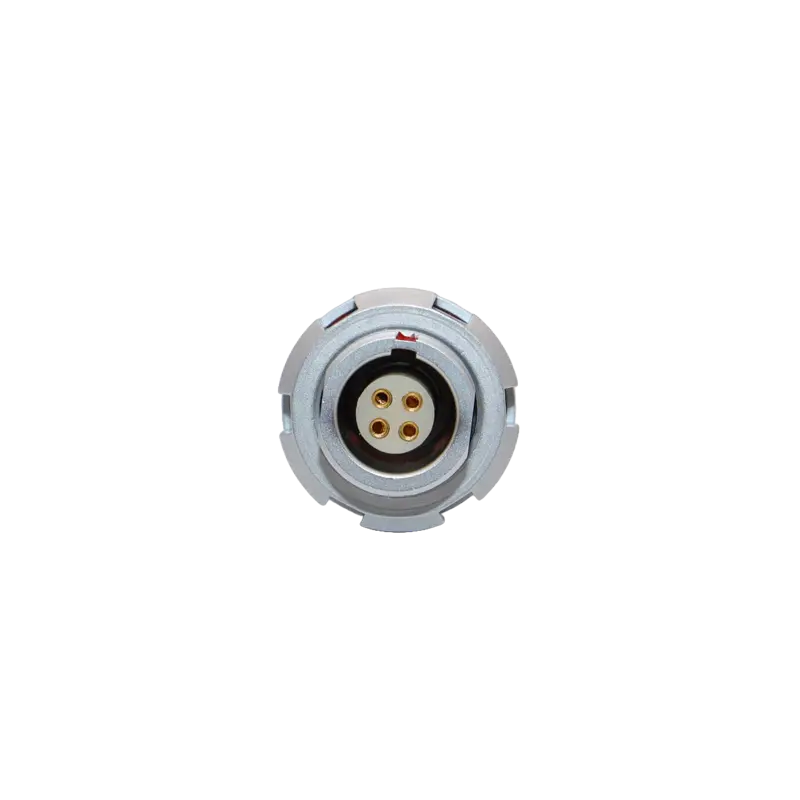

ME外螺母固定插座

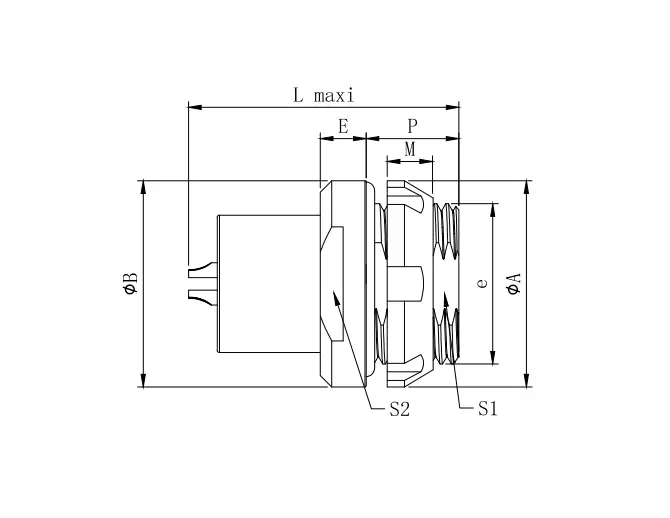

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | L | E | M | P | S1 | S2 |
| 0C | MEG | 15 | 14.5 | M10*0.5 | 20.3 | 3.5 | 3 | 6.5 | 9 | 11 |
| 1C | MEG | 18 | 18 | M14*1.0 | 23.4 | 4.1 | 4 | 8.1 | 12 | 15 |
| 2C | MEG | 20 | 21 | M16*1.0 | 27.8 | 4.8 | 3 | 7.8 | 15 | 18 |
| 3C | MEG | 25 | 26 | M20*1.0 | 33 | 4 | 3.5 | 8 | 18 | 22 |
| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | L | E | M | P | S1 | S2 |
| 0C | MEG | 15 | 14.5 | M10*0.5 | 20.3 | 3.5 | 3 | 6.5 | 9 | 11 |
| 1C | MEG | 18 | 18 | M14*1.0 | 23.4 | 4.1 | 4 | 8.1 | 12 | 15 |
| 2C | MEG | 20 | 21 | M16*1.0 | 27.8 | 4.8 | 3 | 7.8 | 15 | 18 |
| 3C | MEG | 25 | 26 | M20*1.0 | 33 | 4 | 3.5 | 8 | 18 | 22 |
