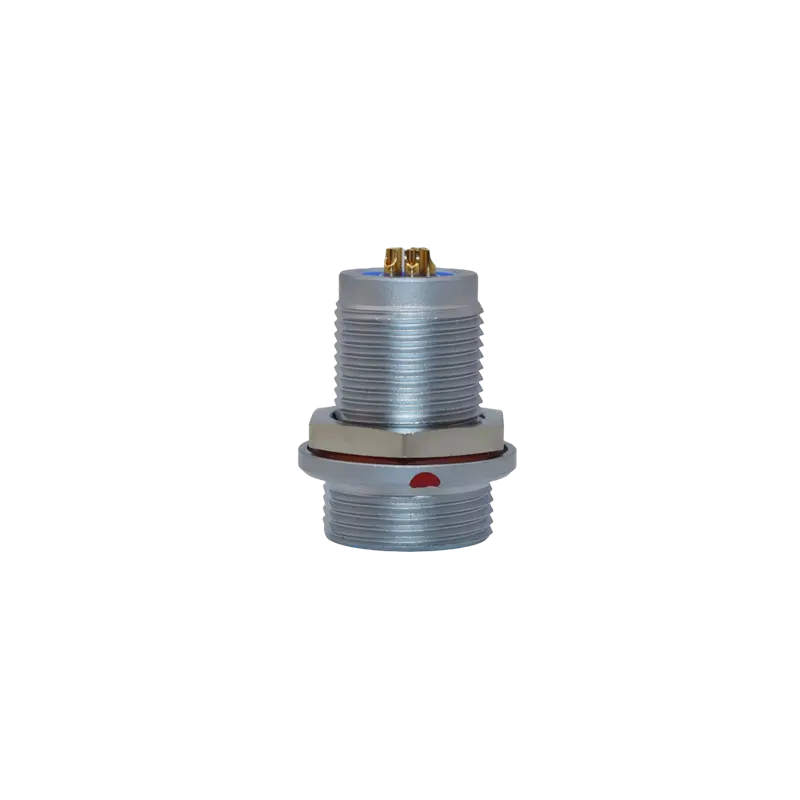

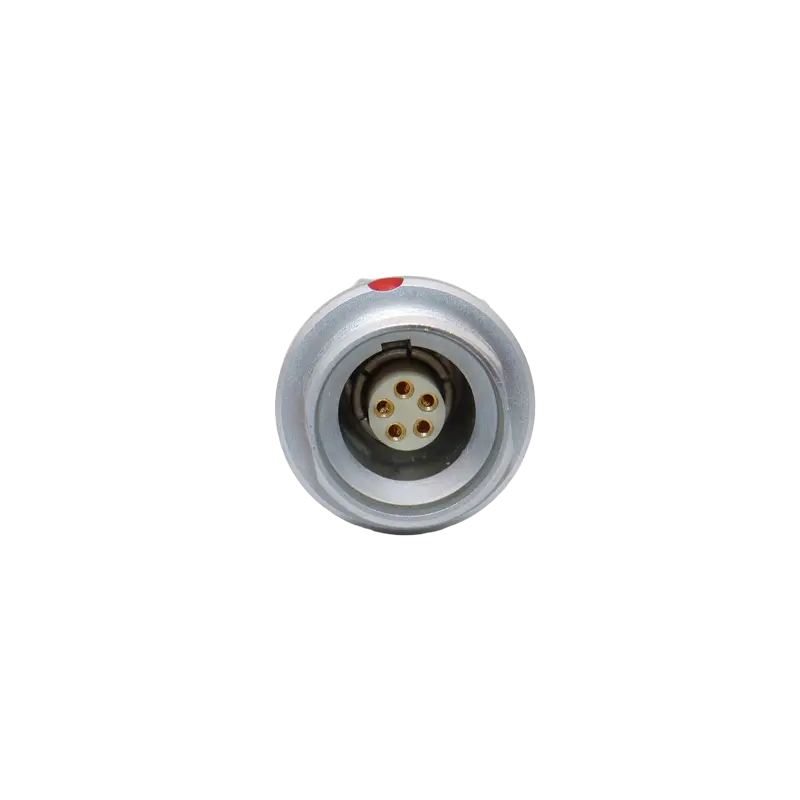

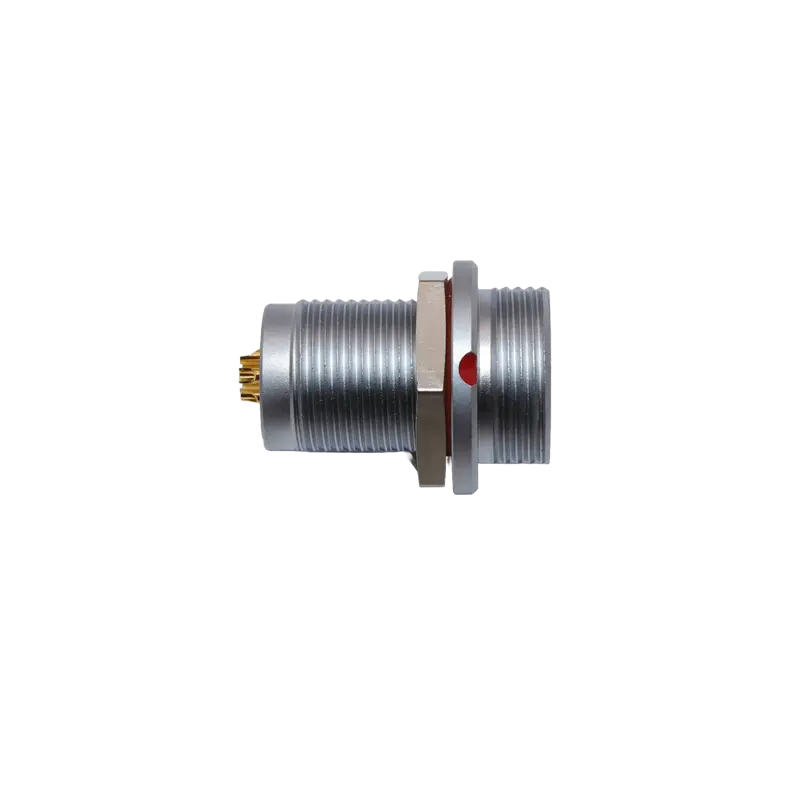

ZV内螺母固定插座
| 项目 | 尺寸 | ||||||||||

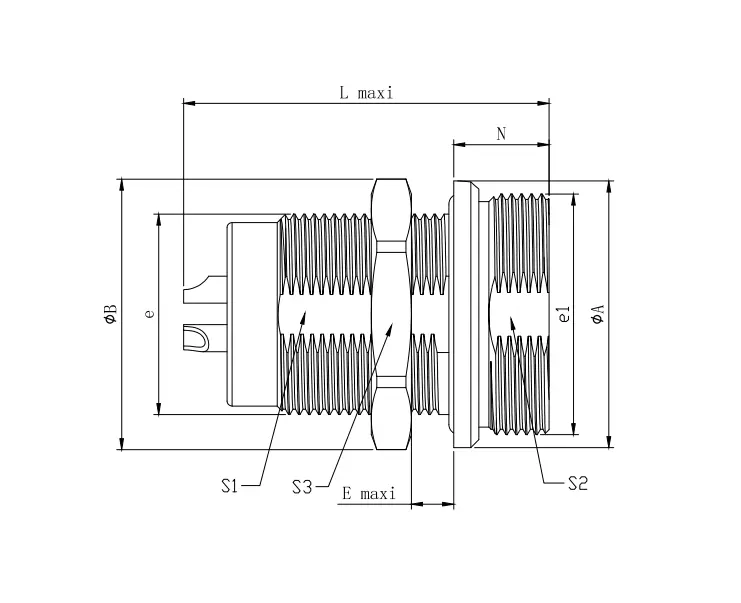

| 系列 | 型号 | A | B | e | e1 | E | L | N | S1 | S2 | S3 |
| 0W | ZVG | 16.2 | 16.0 | M12X1.0 | M14X1.0 | 4.0 | 21.7 | 8.0 | 10.5 | 12.5 | 14 |
| 1W | ZVG | 19.5 | 19.0 | M14X1.0 | M16X1.0 | 10.0 | 27.0 | 8.0 | 12.5 | 14.5 | 17 |
| 2W | ZVG | 22.5 | 21.8 | M16X1.0 | M20X1.0 | 9.0 | 30.7 | 9.0 | 14.5 | 18.5 | 19 |
| 3W | ZVG | 26.6 | 27.0 | M20X1.0 | M24X1.0 | 13.0 | 36.2 | 9.5 | 18.5 | 22.5 | 24 |
| 4W | ZVG | 32.8 | 34.2 | M24X1.0 | M30X1.0 | 15.0 | 40.2 | 9.5 | 22.5 | 28.5 | 30 |
| 5W | ZVG | 48.0 | 53.0 | M38X1.5 | M45X1.5 | 18.0 | 47.5 | 12.5 | 35.5 | 42.5 | 46 |
