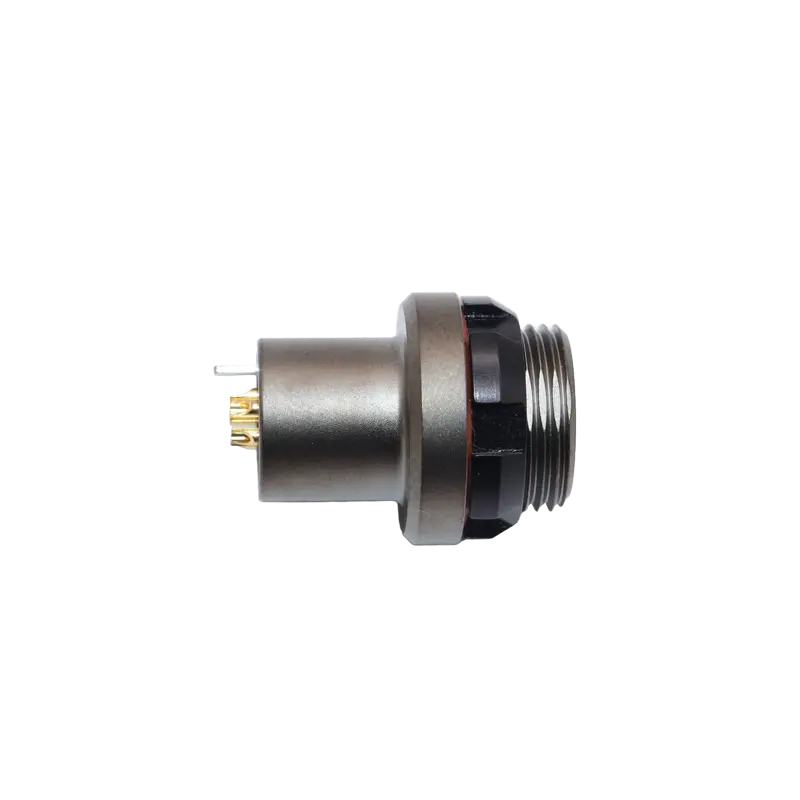

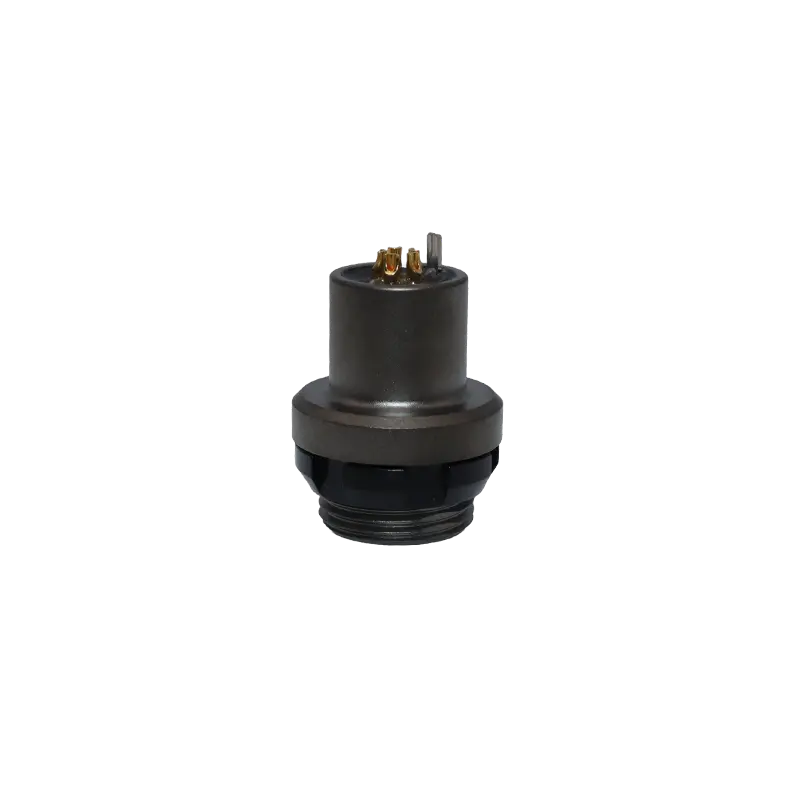

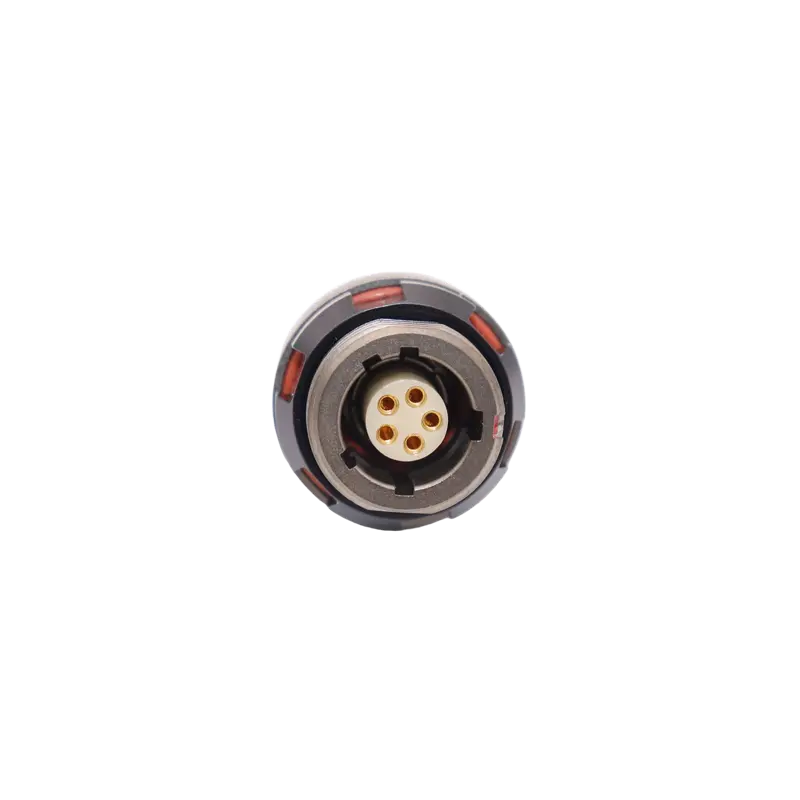

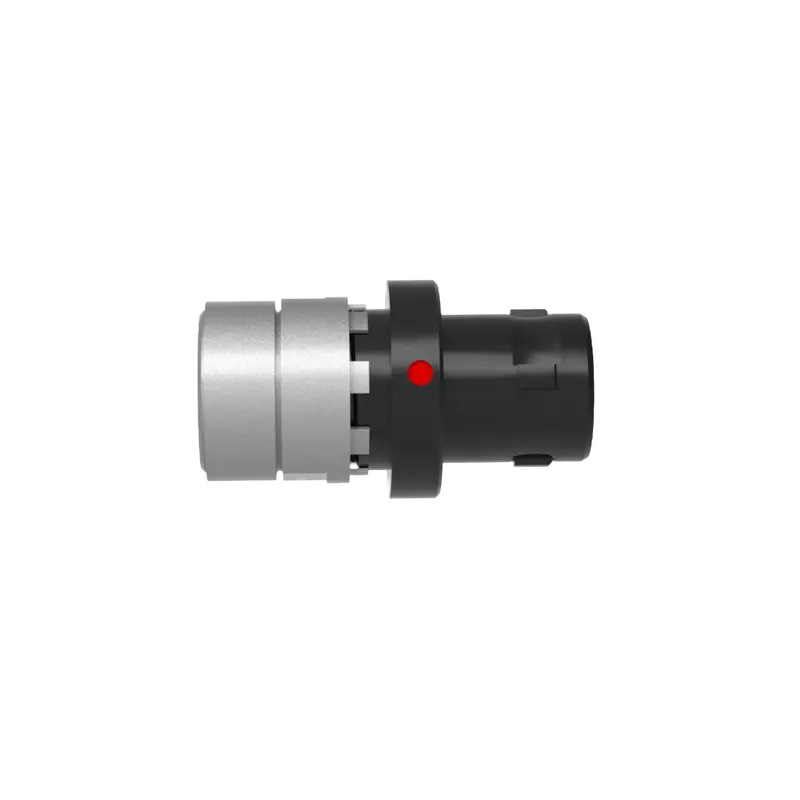

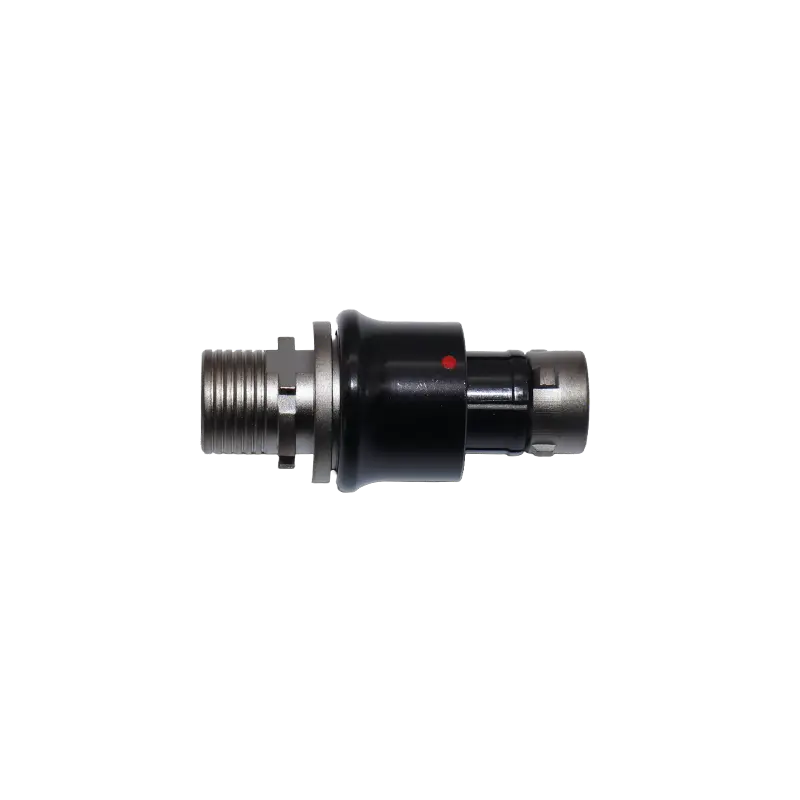

ZL外螺母固定插座

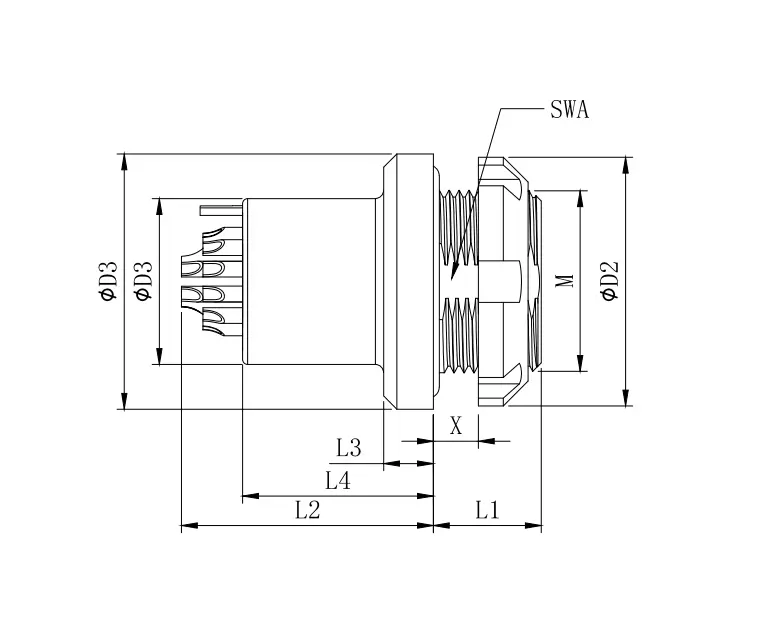

| 尺寸 | 单 位 ( m m ) | ||||||||||
| L1 |
L2 max |
L3 | L4 | X max |
D1 | D2 | D3 | SWA | M | ||
| 0 | 0 | 6.5 | 15.5 | 3.0 | 11.5 | 3.0 | 15.5 | 15.0 | 9.2 | 10.0 | 11x0.75 |
| 1 | 1 | 8.0 | 19.0 | 4.0 | 14.5 | 3.5 | 18.5 | 17.9 | 12.0 | 13.0 | 14x1 |
| A | 1.5 | 7.0 | 17.7 | 2.5 | 12.5 | 3.0 | 18.9 | 18.0 | 14.0 | 13.0 | 14x1 |
| 2 | 2.0 | 8.0 | 21.5 | 4.0 | 14.0 | 3.0 | 20.8 | 21.9 | 14.5 | 15.0 | 16x1 |
