ZG内螺母固定插座

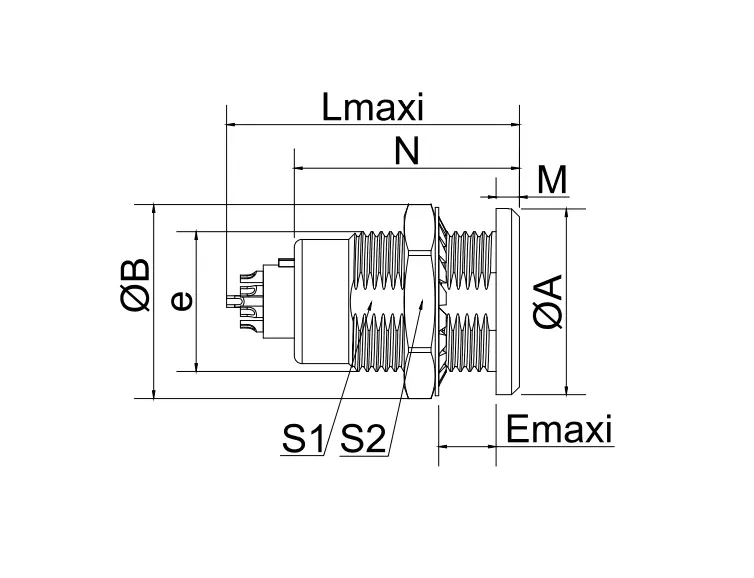

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 | S2 |
| 00T | ZGG | 10 | 10.5 | M7x0.5 | 5.5 | 16 | 1.2 | 12.5 | 6.3 | 9 |
| 0T | ZGG | 12 | 12.5 | M9x0.6 | 6.5 | 19 | 1.5 | 14.5 | 8.2 | 11 |
| 1T | ZGG | 15.5 | 16 | M12X1 | 6.5 | 21 | 1.8 | 16.5 | 10.5 | 14 |
| 2T | ZGG | 18.5 | 19.3 | M15X1 | 7.5 | 23 | 1.8 | 18.5 | 13.5 | 17 |
| 3T | ZGG | 23.5 | 24 | M18X1 | 7.5 | 30.1 | 2.5 | 25 | 16.5 | 22 |
