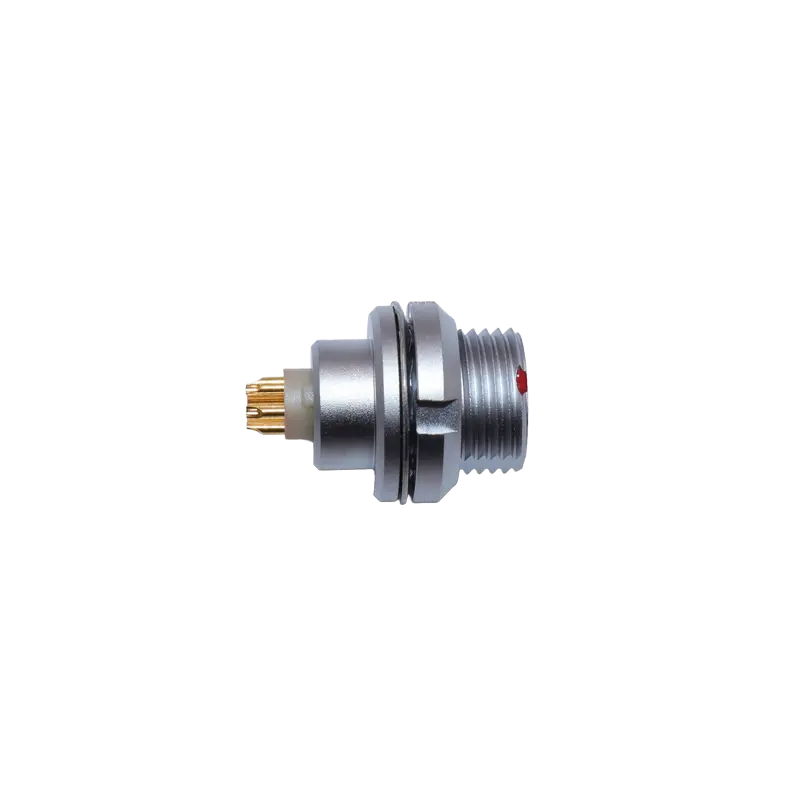

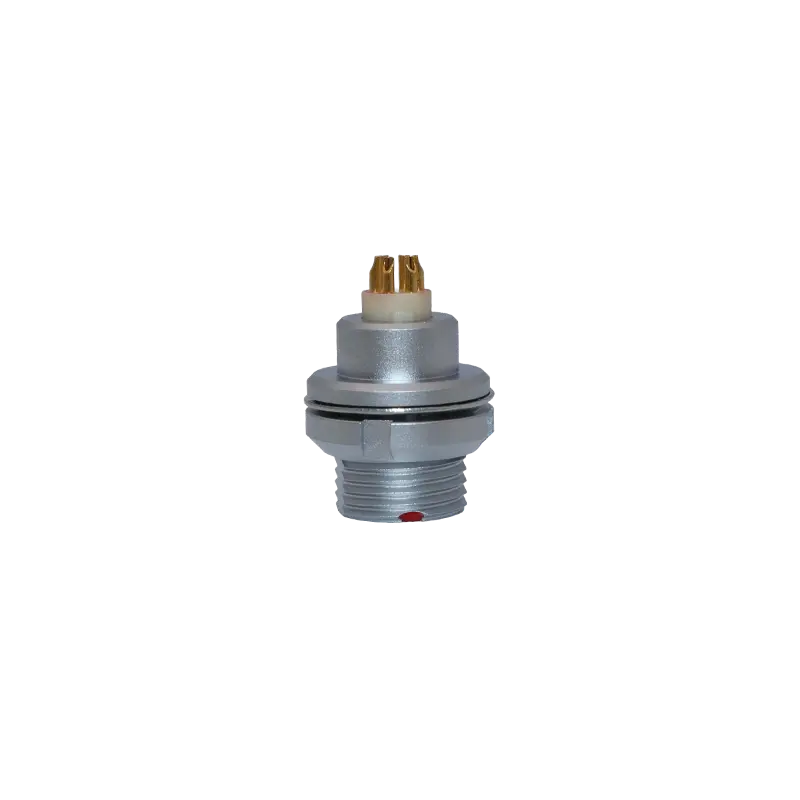

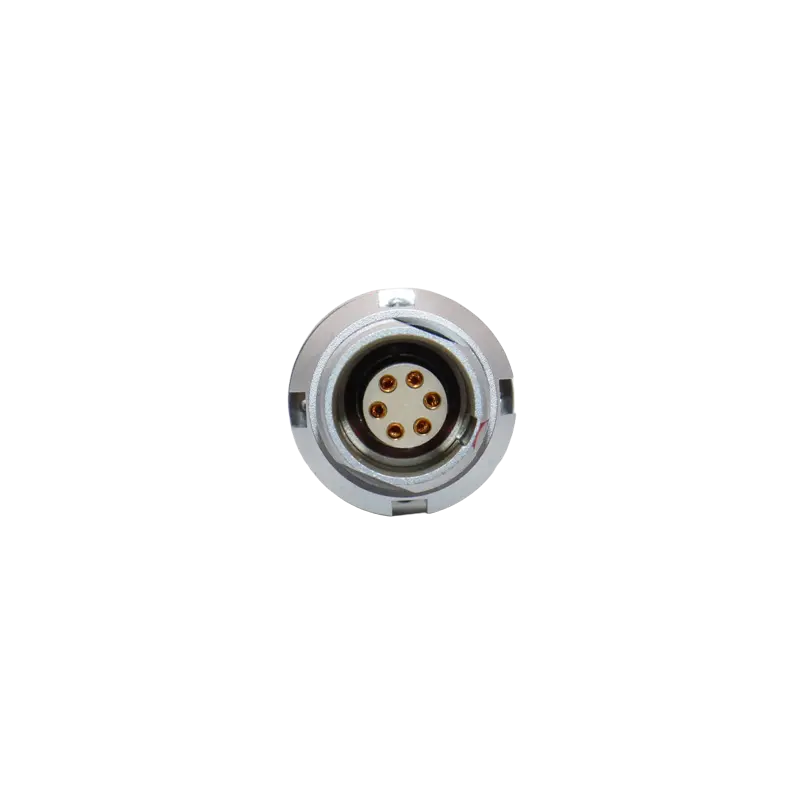

ZE外螺母固定插座
| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | P | L | N | S1 |
| 00T | ZEG | 10 | 10 | M7x0.5 | 5.5 | 7 | 16 | 13.5 | 6.3 |
| 0T | ZEG | 12 | 11.8 | M9x0.6 | 5.5 | 9 | 20.5 | 16.6 | 8.2 |
| 1T | ZEG | 15.5 | 16 | M12X1 | 6 | 10 | 23 | 18.8 | 10.5 |
| 2T | ZEG | 18.5 | 19.3 | M15X1 | 7.5 | 11 | 26.5 | 24.6 | 13.5 |
| 3T | ZEG | 23.5 | 24 | M18X1 | 7.5 | 12 | 30.1 | 25 | 16.5 |
| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | P | L | N | S1 |
| 00T | ZEG | 10 | 10 | M7x0.5 | 5.5 | 7 | 16 | 13.5 | 6.3 |
| 0T | ZEG | 12 | 11.8 | M9x0.6 | 5.5 | 9 | 20.5 | 16.6 | 8.2 |
| 1T | ZEG | 15.5 | 16 | M12X1 | 6 | 10 | 23 | 18.8 | 10.5 |
| 2T | ZEG | 18.5 | 19.3 | M15X1 | 7.5 | 11 | 26.5 | 24.6 | 13.5 |
| 3T | ZEG | 23.5 | 24 | M18X1 | 7.5 | 12 | 30.1 | 25 | 16.5 |
