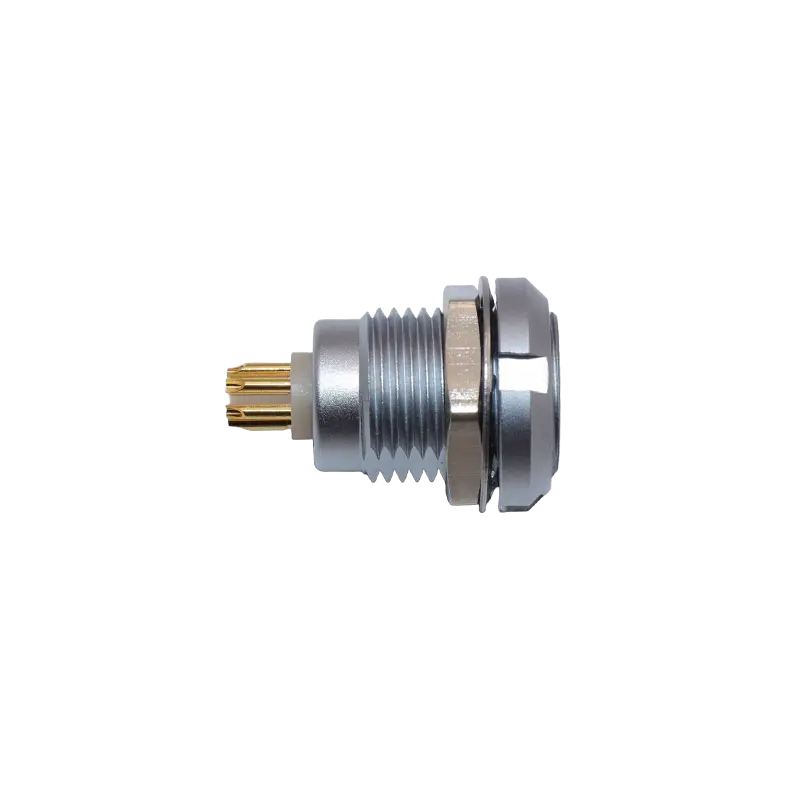

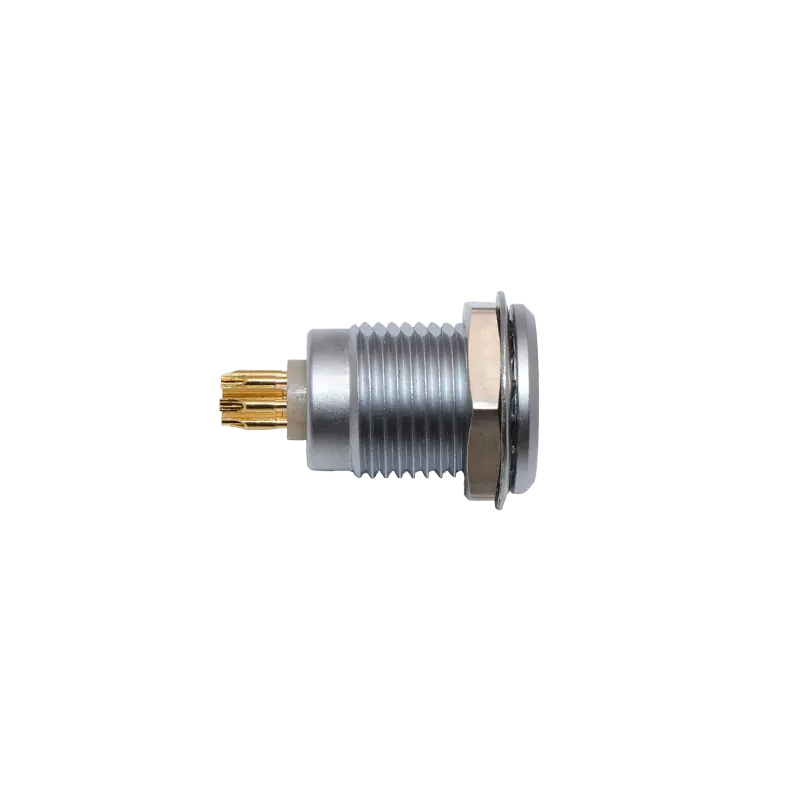

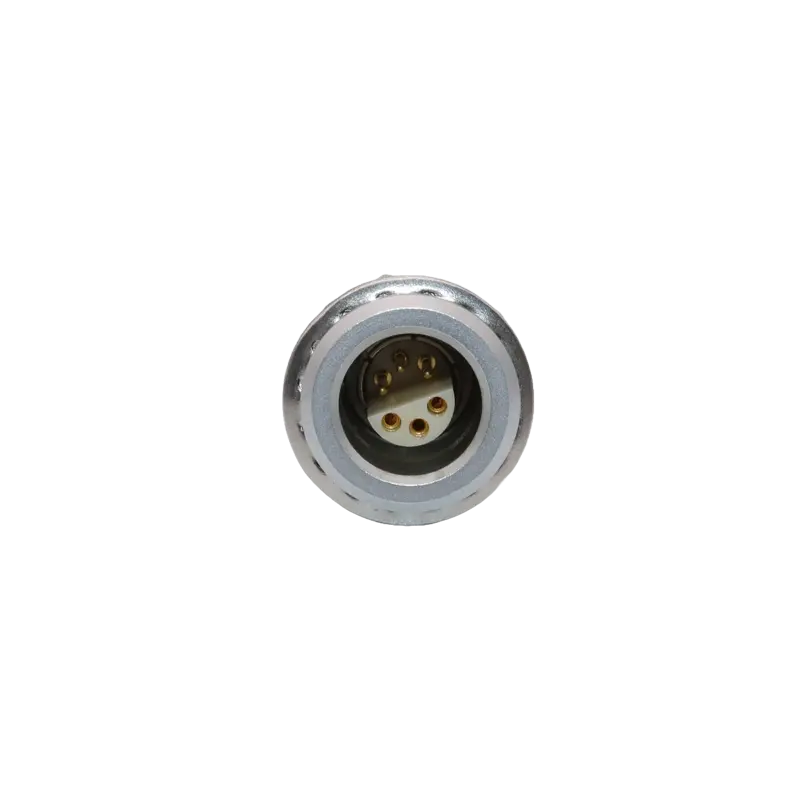

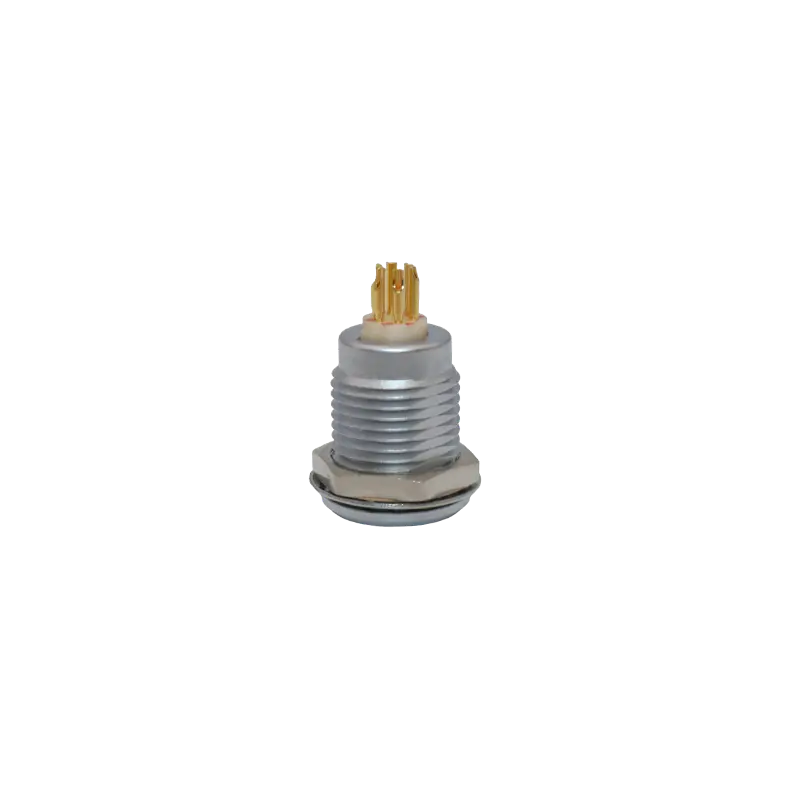

ZR内螺母固定插座

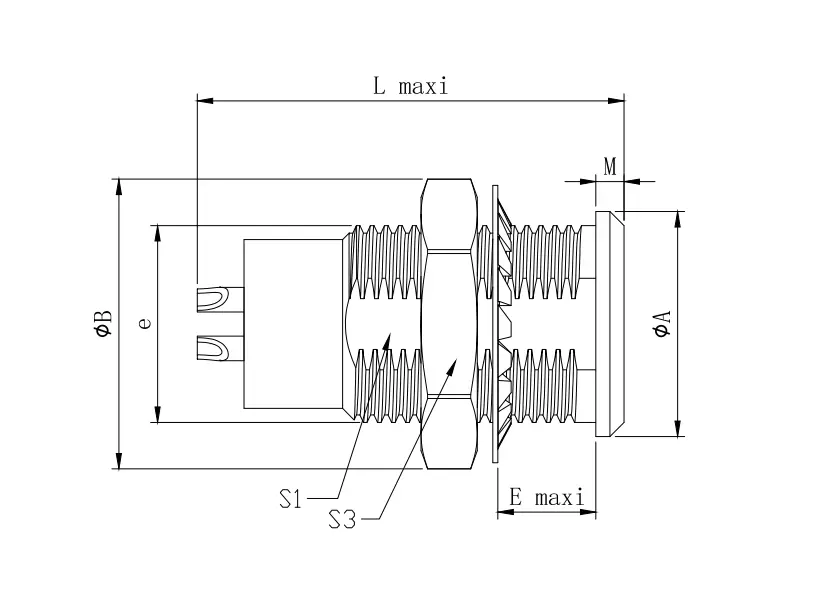

| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | S1 | S3 |
| 00S | ZRA | 8 | 10.3 | M7x0.5 | 5.5 | 14.5 | 1.0 | 6.3 | 9 |
| 0S | ZRA | 10 | 12.3 | M9x0.5 | 8.5 | 18.4 | 1.4 | 8.2 | 11 |
| 1S | ZRA | 14 | 16.0 | M12x1.0 | 7.5 | 21.9 | 1.5 | 10.5 | 14 |
| 2S | ZRA | 18 | 19.3 | M15x1.0 | 8.0 | 24.8 | 2.0 | 13.5 | 17 |
| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | S1 | S3 |
| 00S | ZRA | 8 | 10.3 | M7x0.5 | 5.5 | 14.5 | 1.0 | 6.3 | 9 |
| 0S | ZRA | 10 | 12.3 | M9x0.5 | 8.5 | 18.4 | 1.4 | 8.2 | 11 |
| 1S | ZRA | 14 | 16.0 | M12x1.0 | 7.5 | 21.9 | 1.5 | 10.5 | 14 |
| 2S | ZRA | 18 | 19.3 | M15x1.0 | 8.0 | 24.8 | 2.0 | 13.5 | 17 |
