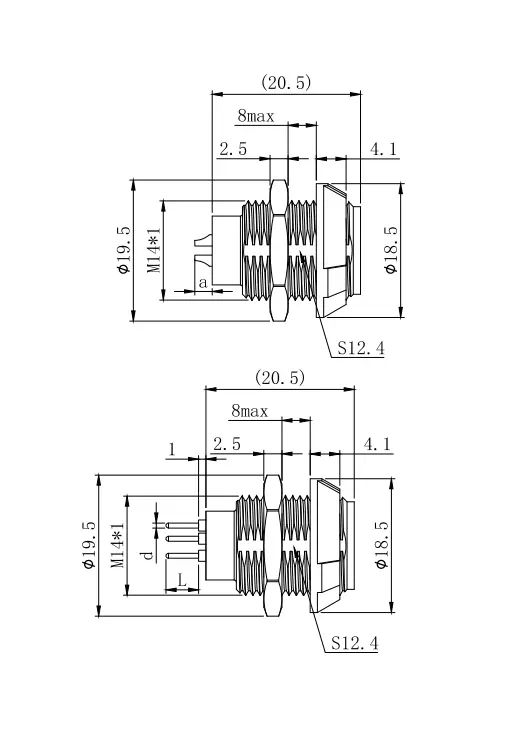

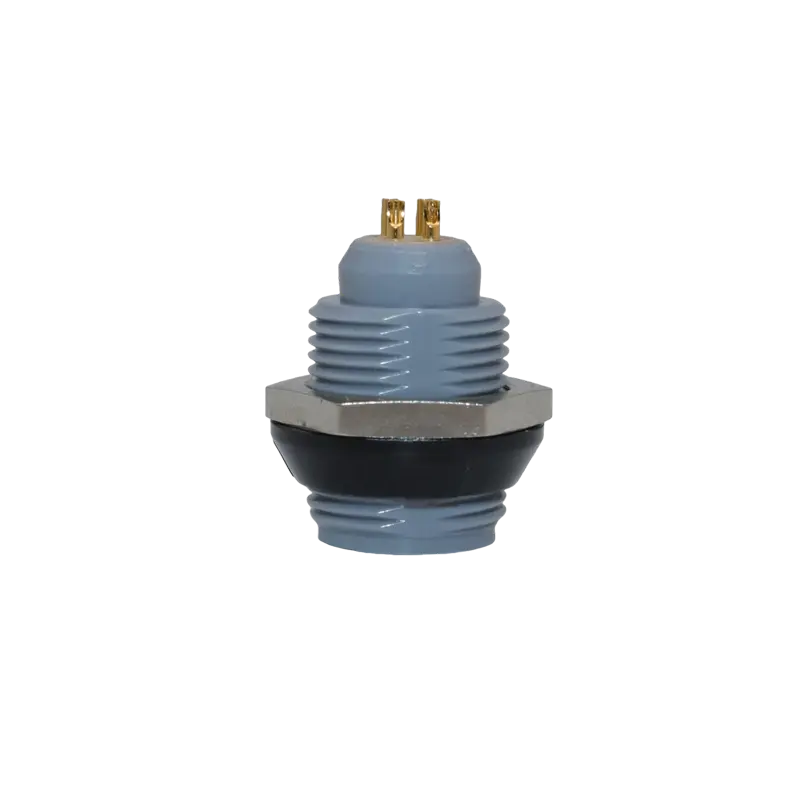

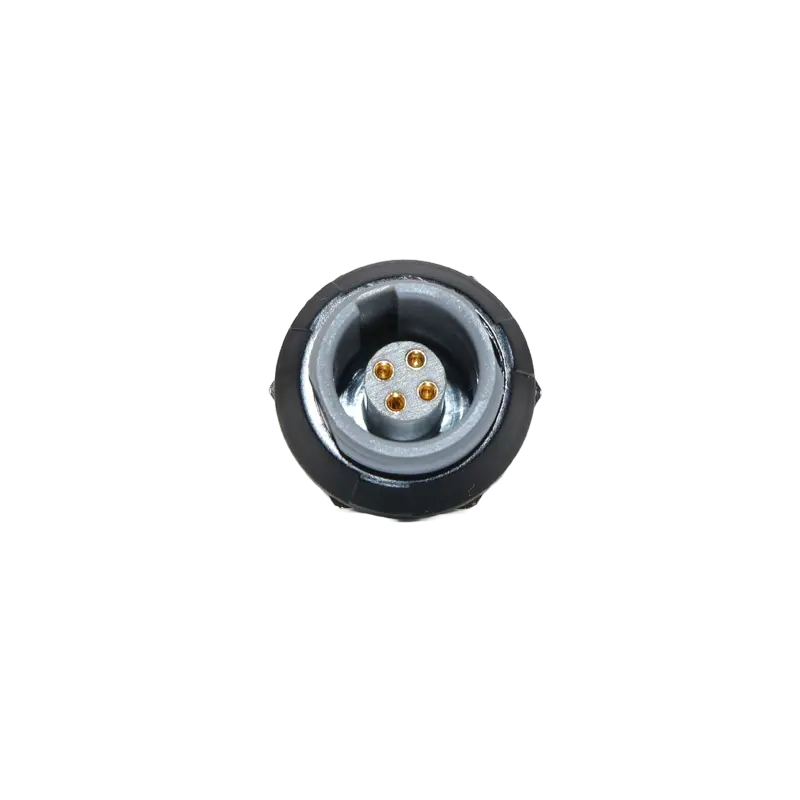

PK双螺母固定插座
| 型号 | 芯数 | 端接方式 | |||
| 焊接 | 直针板接 | ||||
| a | L | Φd | |||
| PKG.1P.302.PLLN | 2 | 2.7 | 5.0 | 0.7 | |
| PKG.1P.303.PLLN | 3 | 2.7 | 5.0 | 0.7 | |
| PKG.1P.304.PLLN | 4 | 2.7 | 5.0 | 0.7 | |
| PKG.1P.305.PLLN | 5 | 2.7 | 5.0 | 0.7 | |
| PKG.1P.306.PLLN | 6 | 2.7 | 3.0 | 0.5 | |
| PKG.1P.307.PLLN | 7 | 4.7 | 3.0 | 0.5 | |
| PKG.1P.308.PLLN | 8 | 4.7 | 3.0 | 0.5 | |
| PKG.1P.309.PLLN | 9 | 4.7 | 3.0 | 0.5 | |
| PKG.1P.310.PLLN | 10 | 4.1 | 3.0 | 0.5 | |
| PKG.1P.314.PLLN | 14 | 4.1 | 3.0 | 0.5 | |
| PKG.1P.316.PLLN | 16 | 4.1 | 3.0 | 0.5 | |
