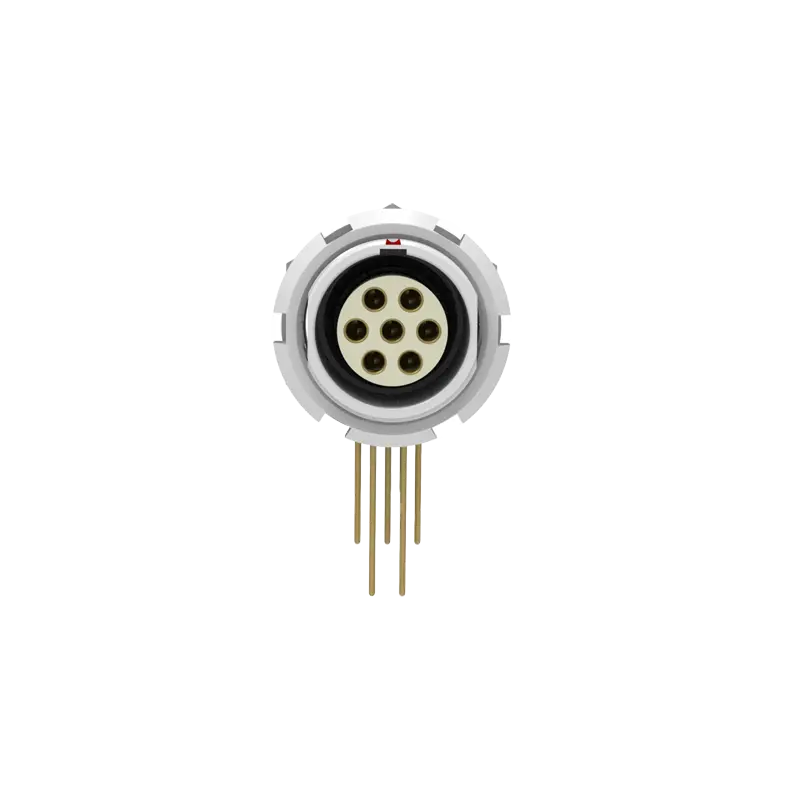

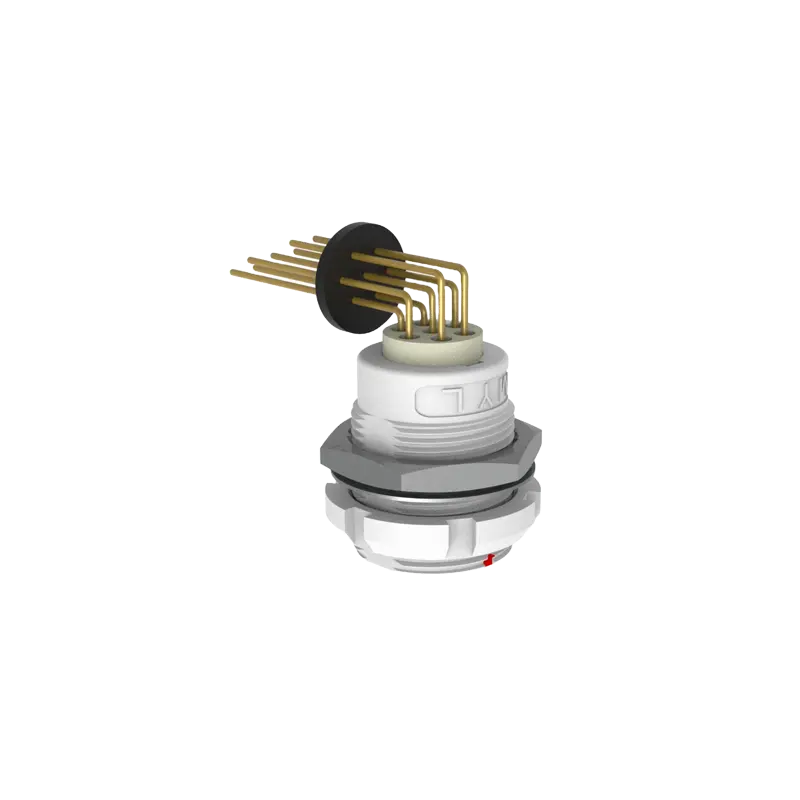

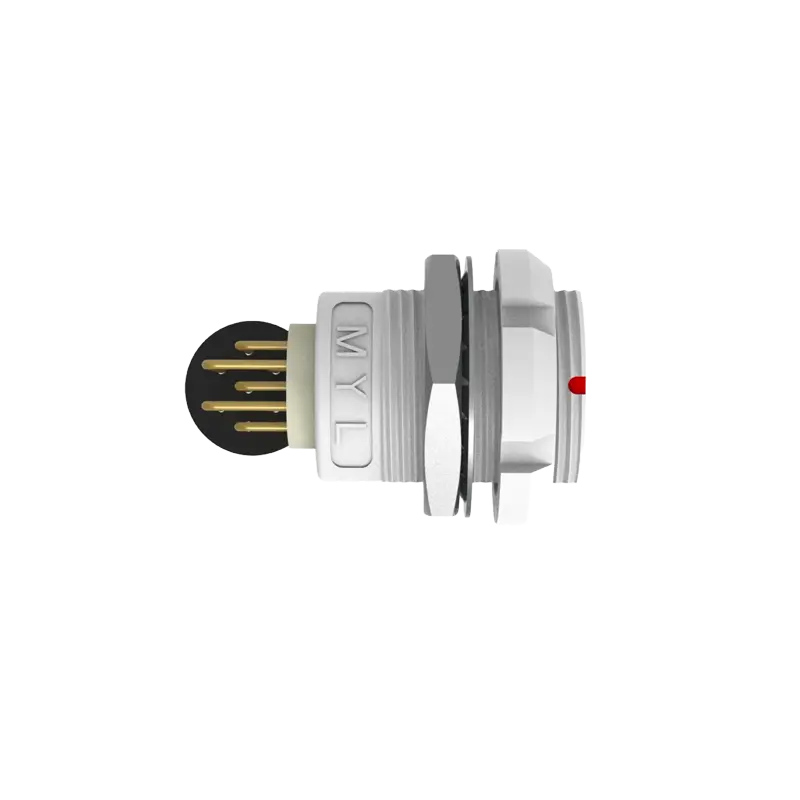

ZC双螺母固定插座

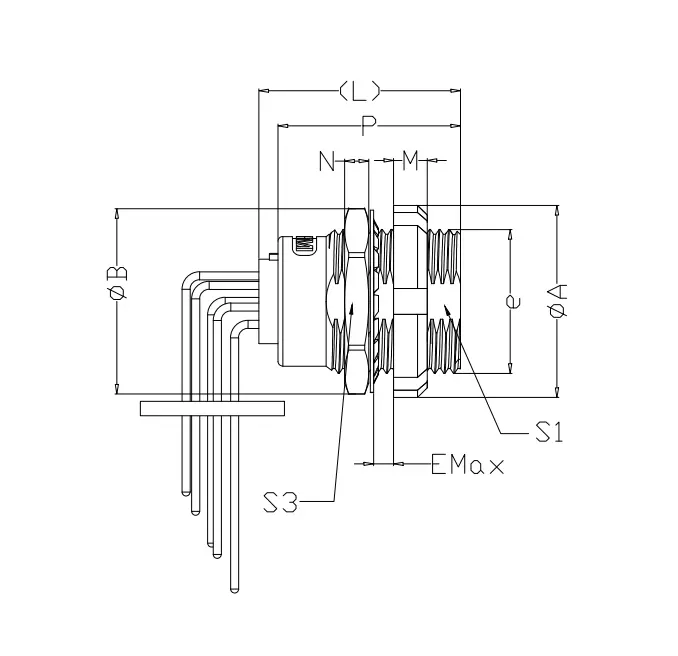

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 | S3 |
| 0BP | ZCG | 11.91 | 12.5 | M9*0.5 | 5.5 | 16.5 | 2.5 | 2 | 8.2 | 11 |
| 1BP | ZCG | 16 | 16 | M12*1 | 6 | 18.7 | 3.5 | 2.5 | 10.5 | 14 |
| 2BP | ZCG | 20 | 19.2 | M15*1 | 6.5 | 21 | 3.5 | 2.5 | 13.5 | 17 |
| 3BP | ZCG | 24 | 25 | M18*1 | 9 | 25 | 4.5 | 3 | 16.5 | 22 |
| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 | S3 |
| 0BP | ZCG | 11.91 | 12.5 | M9*0.5 | 5.5 | 16.5 | 2.5 | 2 | 8.2 | 11 |
| 1BP | ZCG | 16 | 16 | M12*1 | 6 | 18.7 | 3.5 | 2.5 | 10.5 | 14 |
| 2BP | ZCG | 20 | 19.2 | M15*1 | 6.5 | 21 | 3.5 | 2.5 | 13.5 | 17 |
| 3BP | ZCG | 24 | 25 | M18*1 | 9 | 25 | 4.5 | 3 | 16.5 | 22 |
