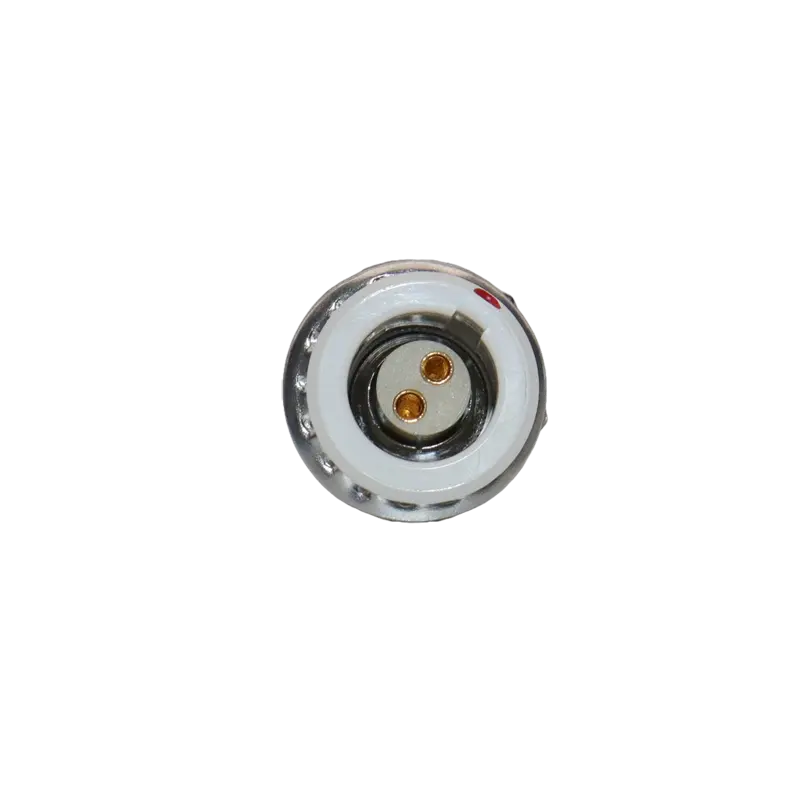

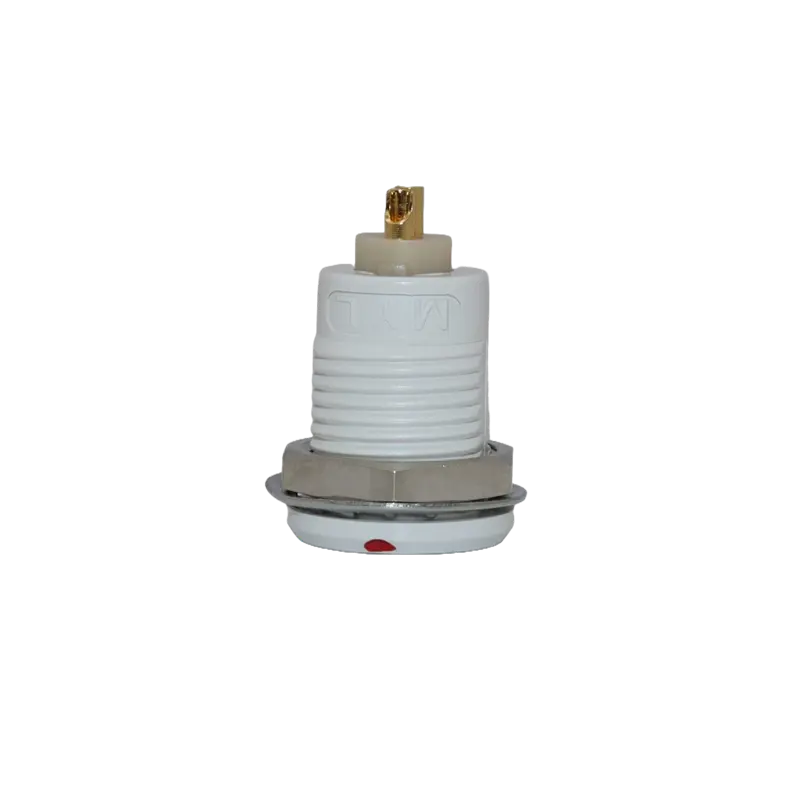

ZG内螺母固定插座

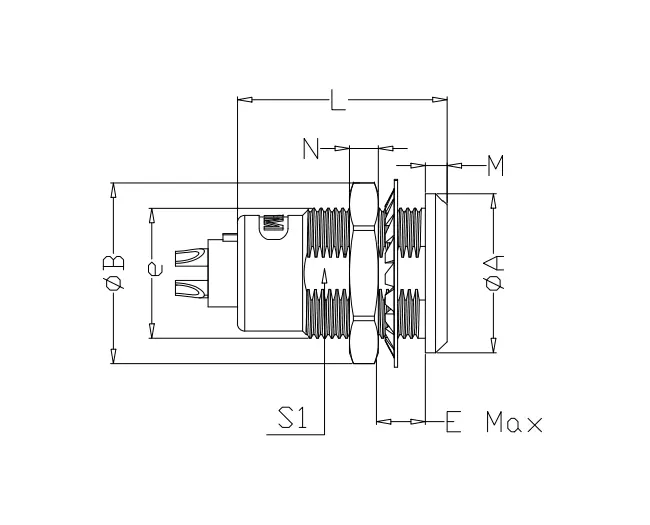

| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 |
| 0BP | ZGG | 11 | 12.5 | M9*0.5 | 7 | 14.5 | 1.5 | 2 | 8.2 |
| 1BP | ZGG | 14 | 16 | M12*1 | 9 | 16.5 | 2 | 2.5 | 10.5 |
| 2BP | ZGG | 18 | 19.2 | M15*1 | 9 | 19 | 2 | 2.5 | 13.5 |
| 3BP | ZGG | 21 | 25 | M18*1 | 11.5 | 22.5 | 2 | 3 | 16.5 |
| 4BP | ZGG | 28 | 34 | M25*1 | 12 | 27 | 3 | 5 | 23.5 |
| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 |
| 0BP | ZGG | 11 | 12.5 | M9*0.5 | 7 | 14.5 | 1.5 | 2 | 8.2 |
| 1BP | ZGG | 14 | 16 | M12*1 | 9 | 16.5 | 2 | 2.5 | 10.5 |
| 2BP | ZGG | 18 | 19.2 | M15*1 | 9 | 19 | 2 | 2.5 | 13.5 |
| 3BP | ZGG | 21 | 25 | M18*1 | 11.5 | 22.5 | 2 | 3 | 16.5 |
| 4BP | ZGG | 28 | 34 | M25*1 | 12 | 27 | 3 | 5 | 23.5 |
