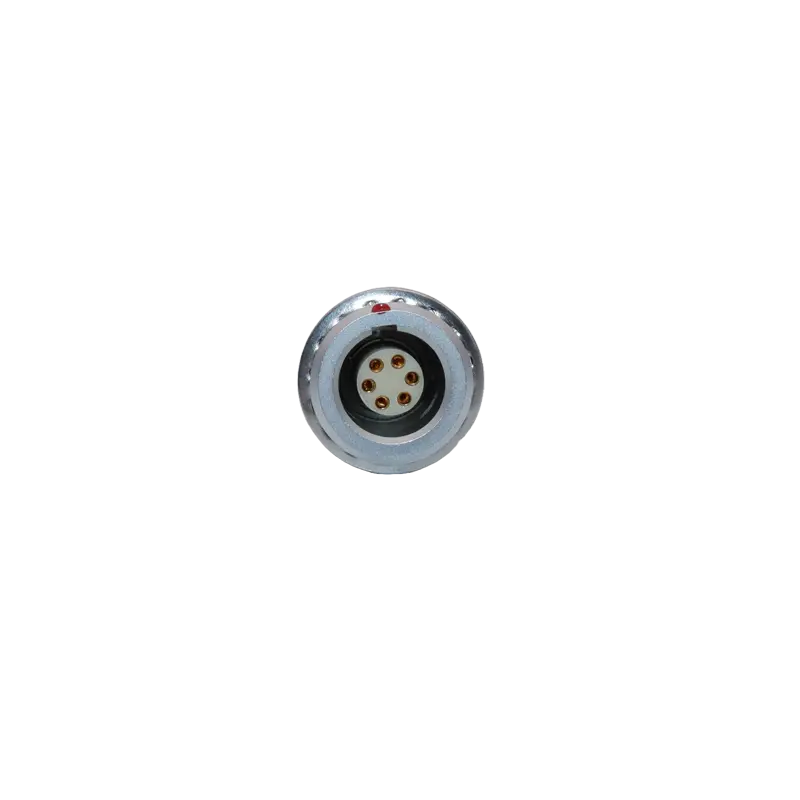

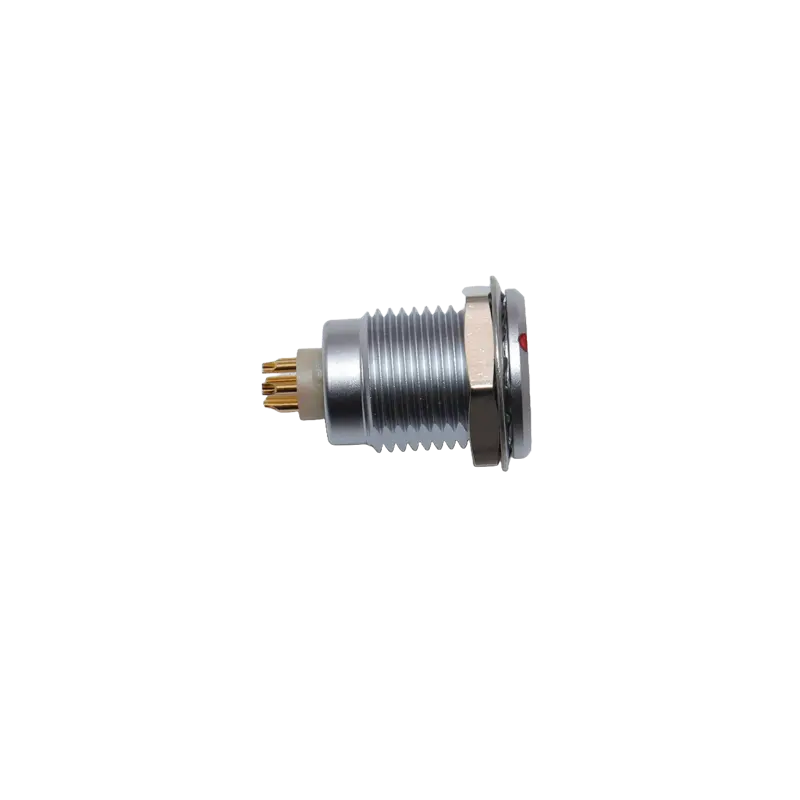

ZG内螺母固定插座

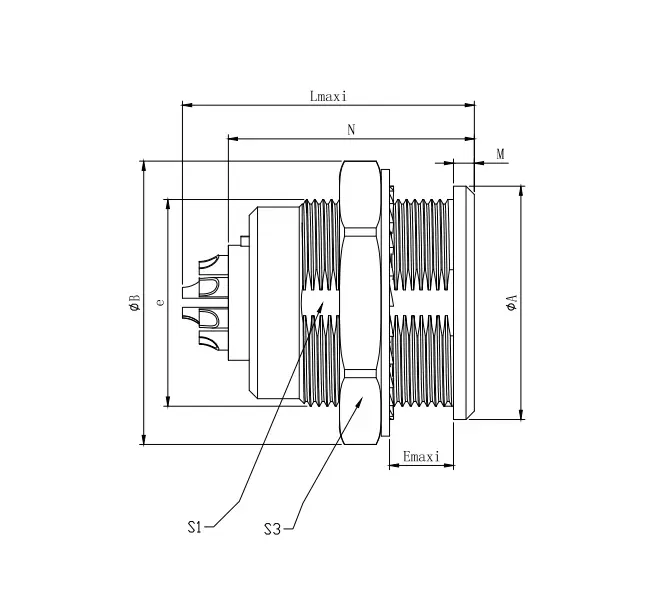

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 | S3 |
| 00B | ZGG | 8 | 10.3 | M7x0.5 | 6.0 | 16.2 | 1.0 | 13.7 | 6.3 | 9 |
| 0B | ZGG | 10 | 12.5 | M9x0.5 | 7.0 | 20.7 | 1.2 | 16.5 | 8.2 | 11 |
| 1B | ZGG | 14 | 16.0 | M12x1.0 | 7.0 | 23.0 | 1.5 | 18.7 | 10.5 | 14 |
| 2B | ZGG | 18 | 19.2 | M15x1.0 | 6.0 | 19.8 | 2.0 | 23 | 13.5 | 17 |
| 3B | ZGG | 21 | 25.0 | M18x1.0 | 11.5 | 25 | 1.8 | 25 | 16.5 | 22 |
| 4B | ZGG | 28 | 34.0 | M25x1.0 | 12.0 | 32.5 | 2.5 | 29.5 | 23.5 | 30 |
