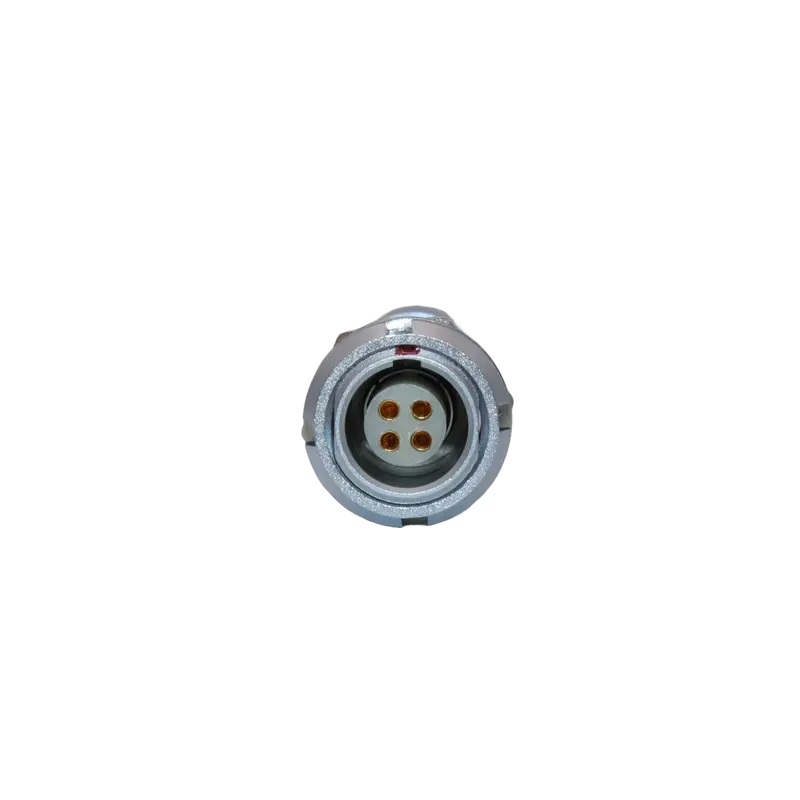

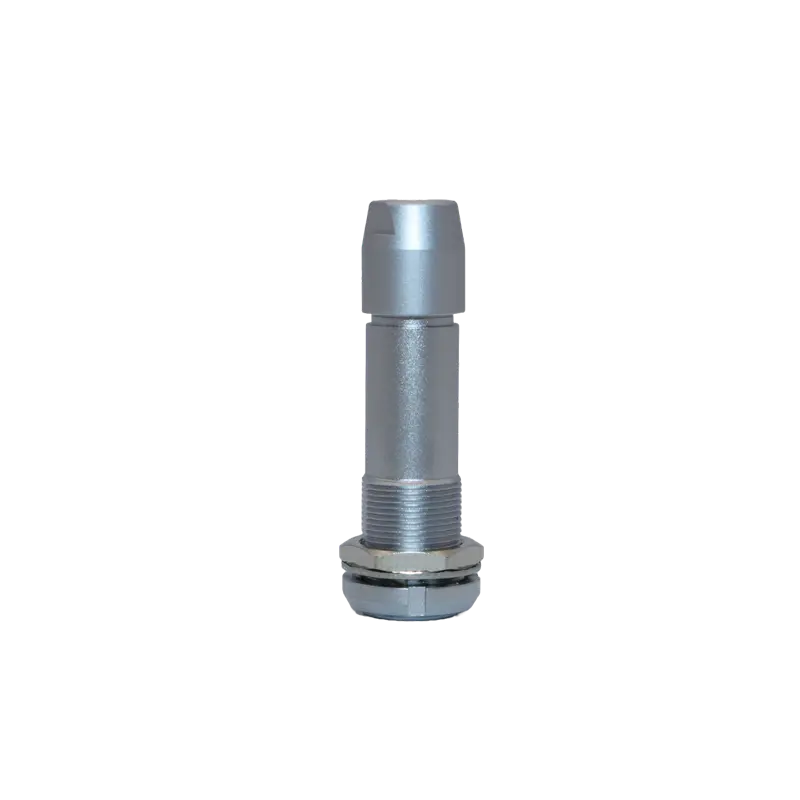

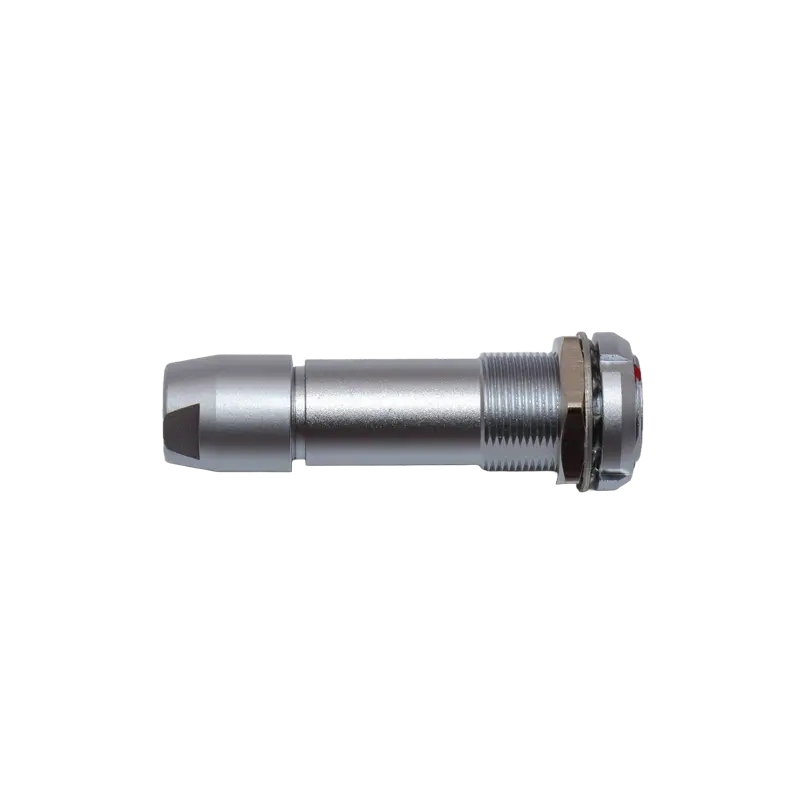

DF双螺母固定插座

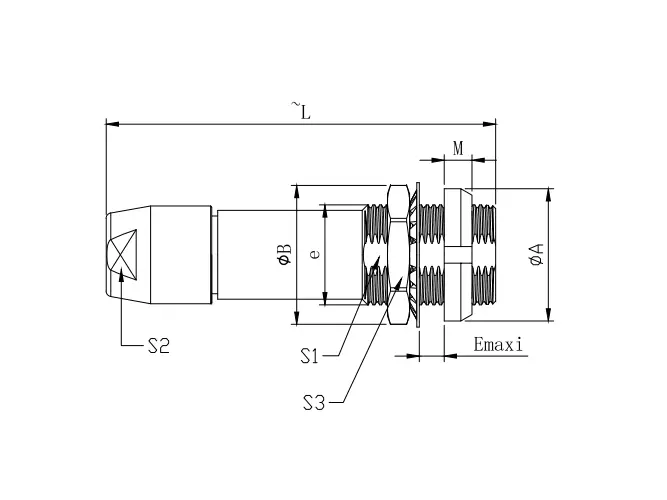

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | S1 | S2 | S3 |
| 0B | DFG | 12 | 12.4 | M9x0.5 | 6.0 | 35.5 | 2.5 | 8.2 | 8 | 11 |
| 1B | DFG | 16 | 15.8 | M12x1.0 | 6.5 | 40.5 | 3.5 | 10.5 | 9 | 14 |
| 2B | DFG | 20 | 19.2 | M15x1.0 | 6.5 | 48.7 | 3.5 | 13.5 | 12 | 17 |
| 3B | DFG | 24 | 25.0 | M18x1.0 | 9.0 | 56 | 4.5 | 16.5 | 14 | 22 |
| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | S1 | S2 | S3 |
| 0B | DFG | 12 | 12.4 | M9x0.5 | 6.0 | 35.5 | 2.5 | 8.2 | 8 | 11 |
| 1B | DFG | 16 | 15.8 | M12x1.0 | 6.5 | 40.5 | 3.5 | 10.5 | 9 | 14 |
| 2B | DFG | 20 | 19.2 | M15x1.0 | 6.5 | 48.7 | 3.5 | 13.5 | 12 | 17 |
| 3B | DFG | 24 | 25.0 | M18x1.0 | 9.0 | 56 | 4.5 | 16.5 | 14 | 22 |
