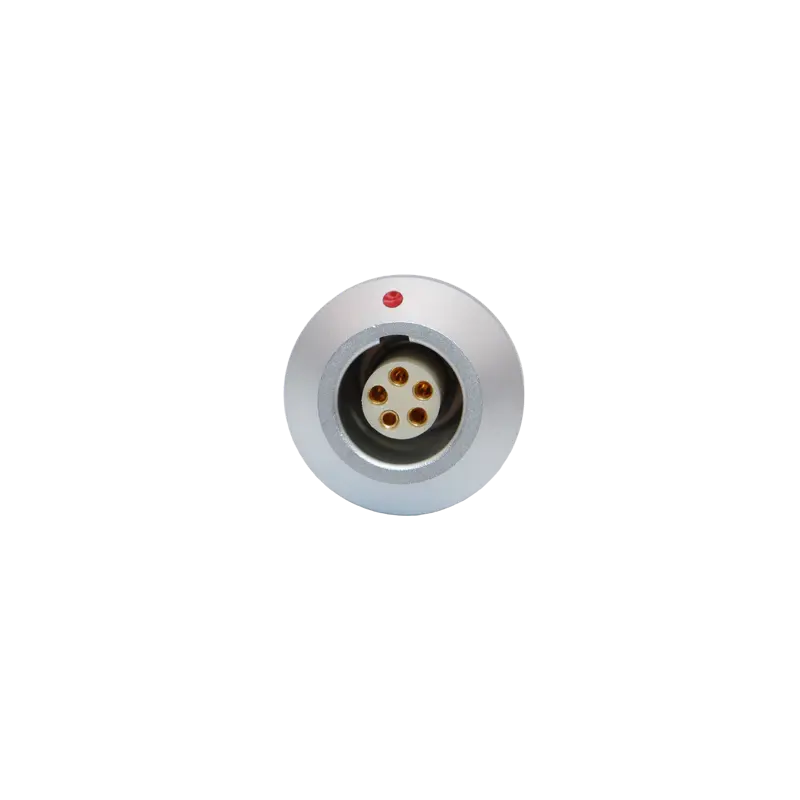

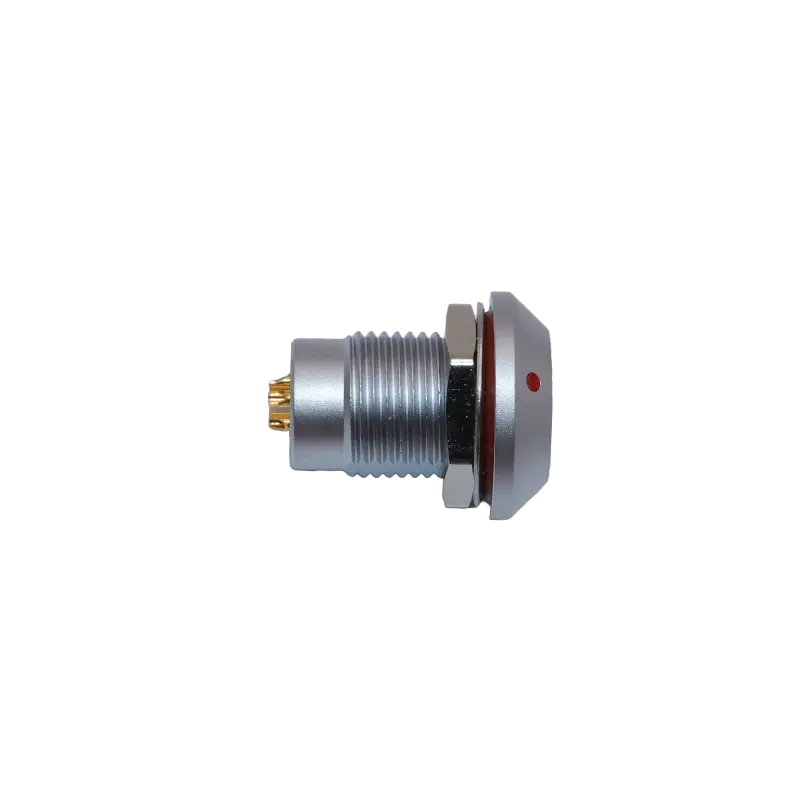

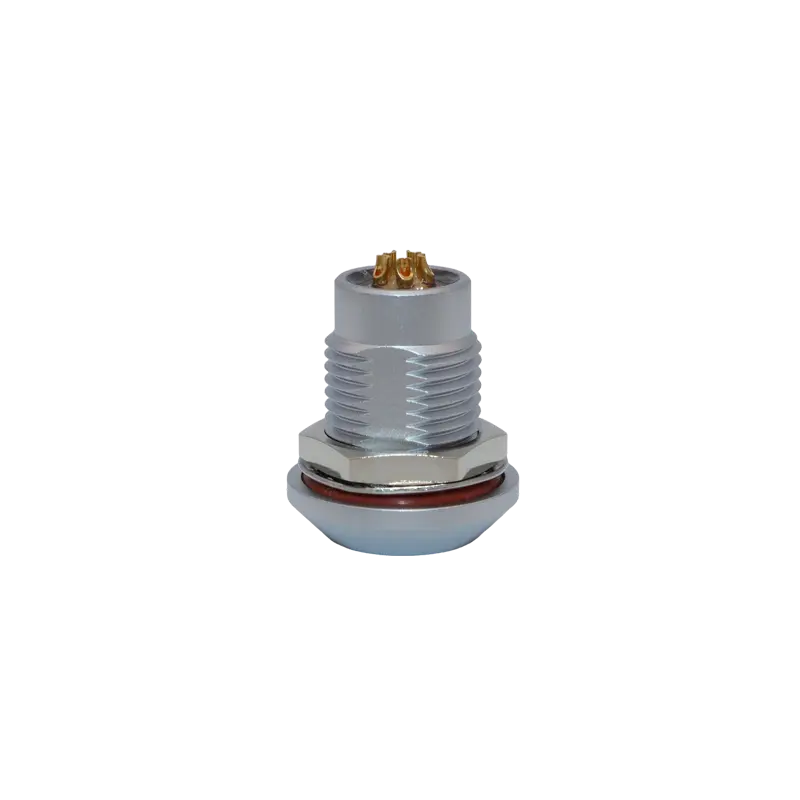

MG内螺母固定插座

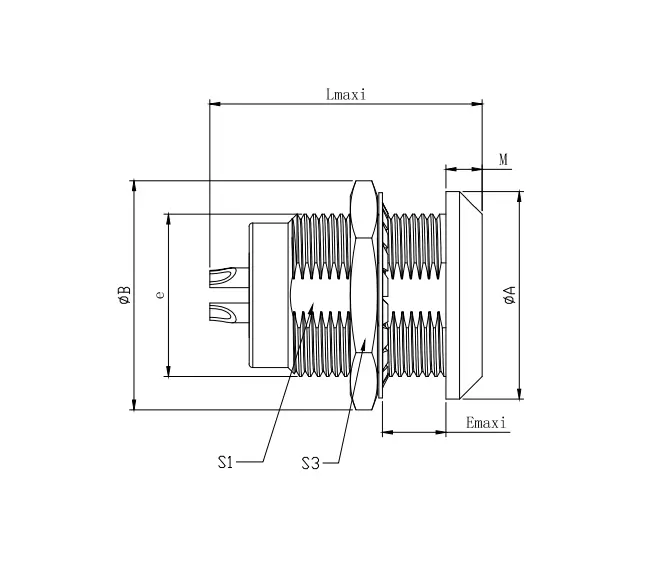

| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | S1 | S3 |
| 00B | MGG | 11 | 10.3 | M7X0.5 | 7.5 | 14 | 1.5 | 6.3 | 9 |
| 0B | MGG | 13 | 12.5 | M9x0.6 | 7.0 | 22.1 | 3.0 | 8.2 | 11 |
| 1B | MGG | 18 | 15.8 | M12x1.0 | 7.5 | 23.2 | 4.5 | 10.5 | 14 |
| 2B | MGG | 20 | 19.2 | M15x1.0 | 8.0 | 24.3 | 4.0 | 13.5 | 17 |
| 3B | MGG | 23 | 25.4 | M18x1.0 | 13.0 | 36.1 | 4.0 | 16.5 | 22 |
| 4B | MGG | 34 | 34.0 | M25x1.0 | 10.5 | 37.2 | 4.0 | 23.5 | 30 |
