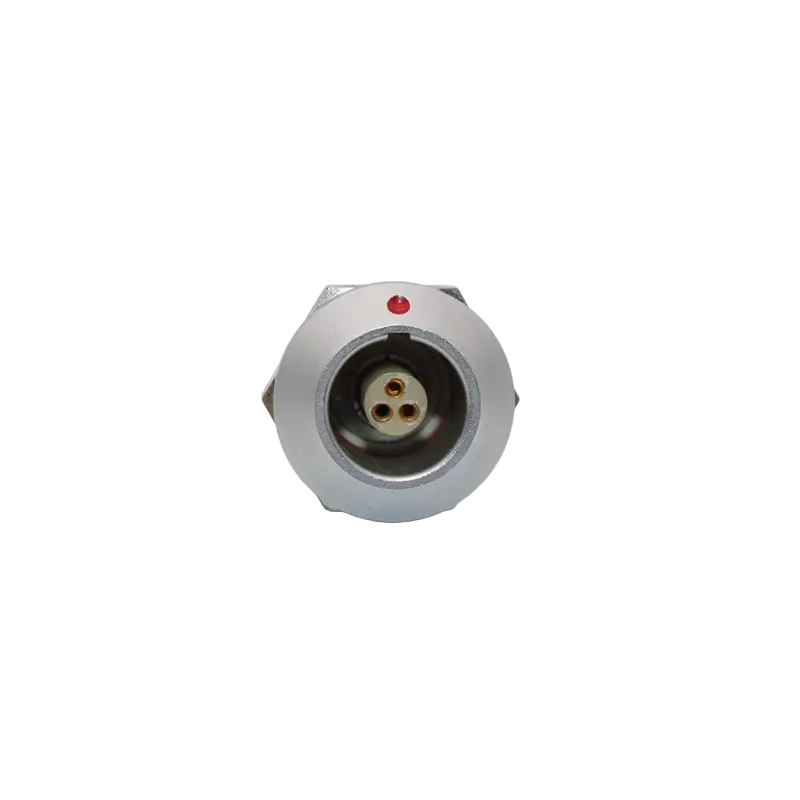

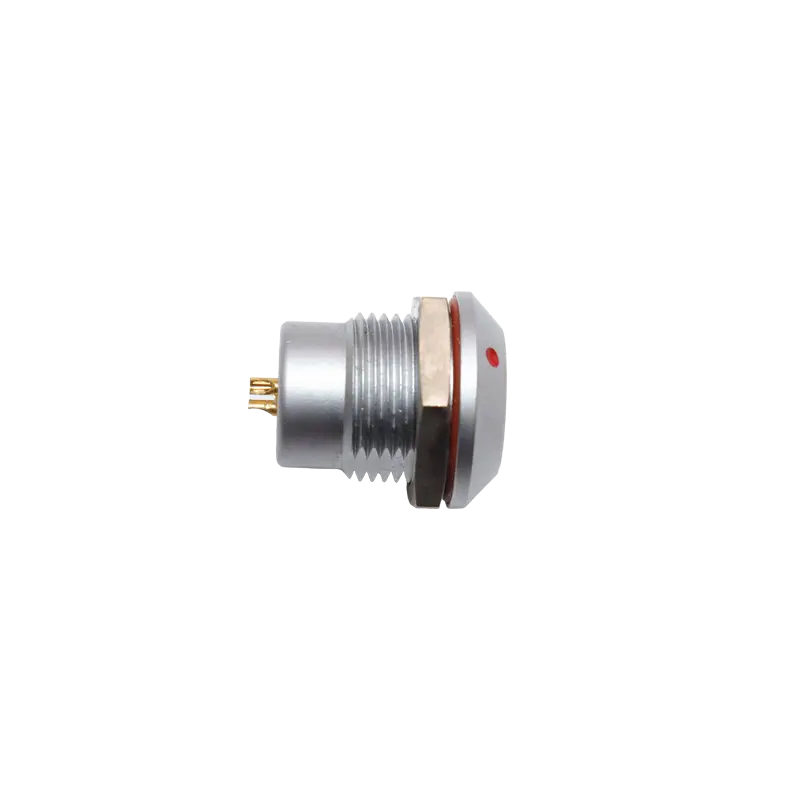

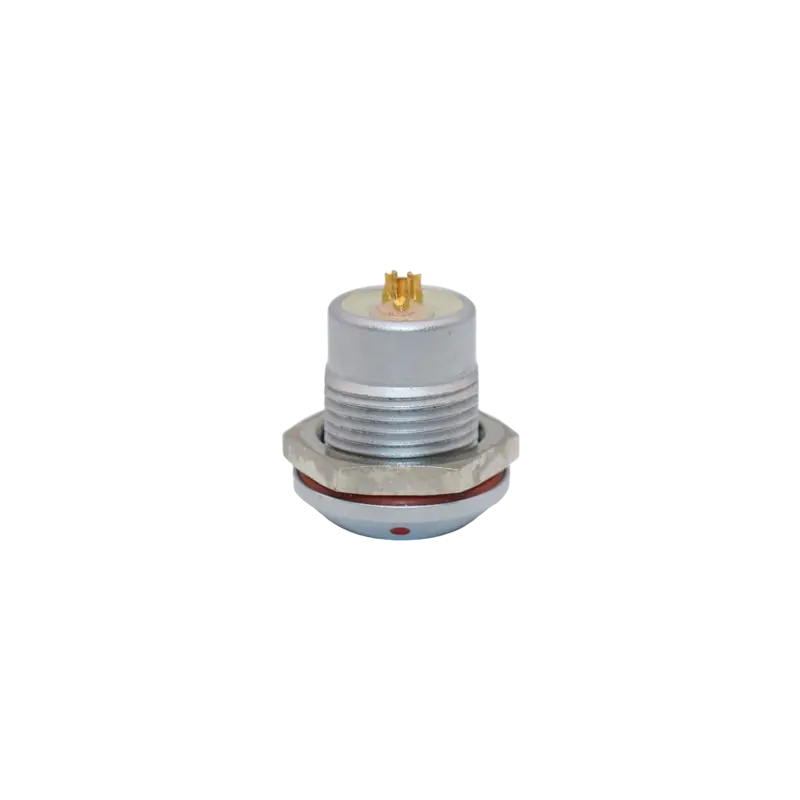

MG内螺母固定插座

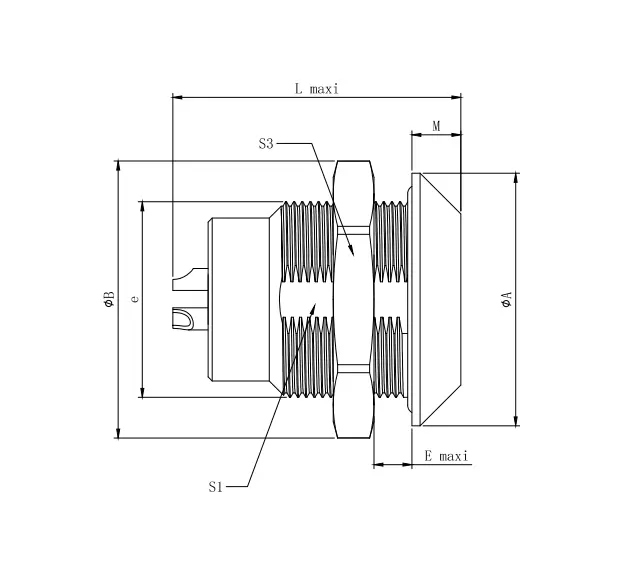

| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | S1 | S3 |
| OK | MGG | 18 | 19.2 | M14x1.0 | 5.5 | 20.0 | 4.0 | 12.5 | 17 |
| 1K | MGG | 20 | 21.5 | M16x1.0 | 9 | 30.0 | 4.5 | 14.5 | 19 |
| 2K | MGG | 25 | 27.0 | M20x1.0 | 10.5 | 33.7 | 5.5 | 18.5 | 24 |
| 3K | MGG | 31 | 34 | M24x1.0 | 12.0 | 33.5 | 6.0 | 22.5 | 30 |
| 4K | MGG | 37 | 40 | M30x1.0 | 13.5 | 40.2 | 6.5 | 28.5 | 36 |
