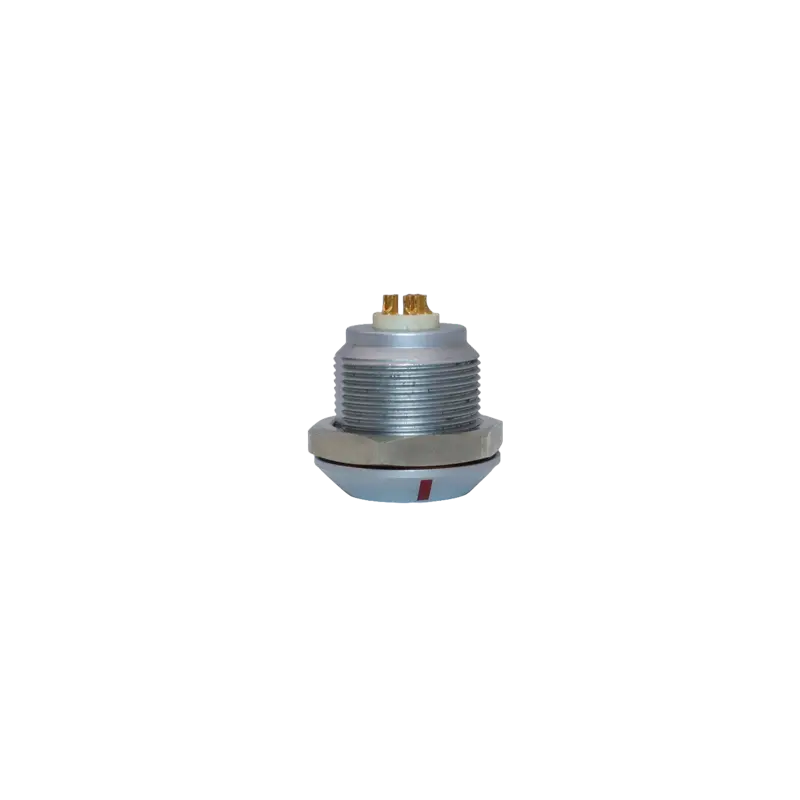

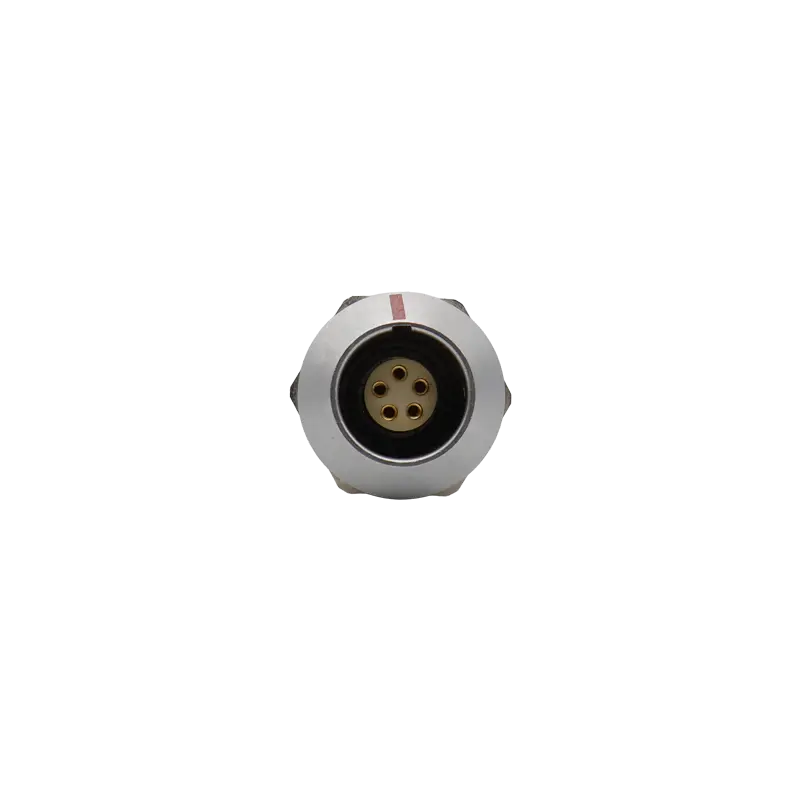

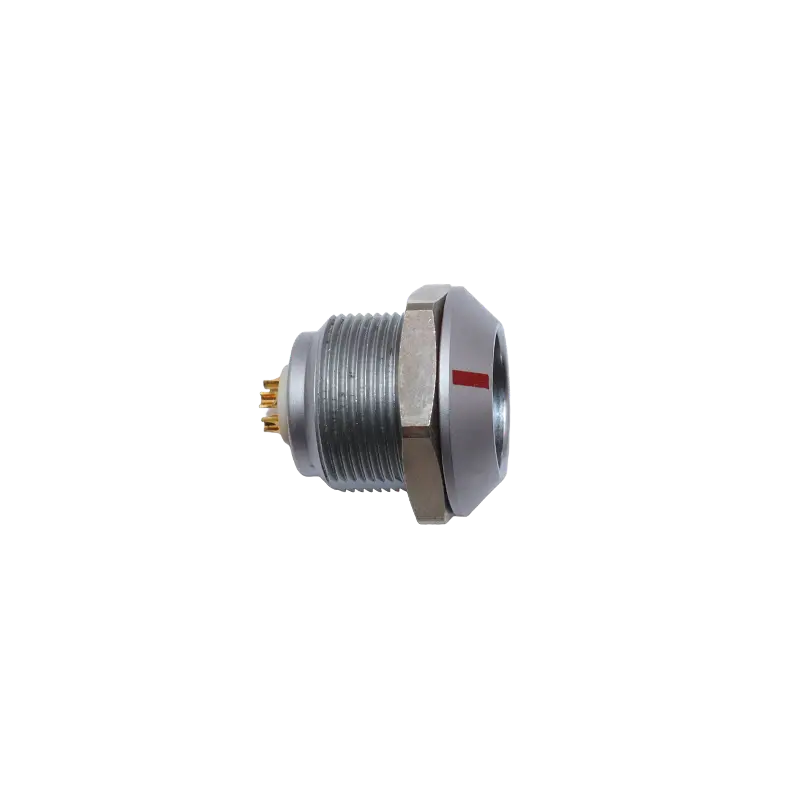

ZG内螺母固定插座

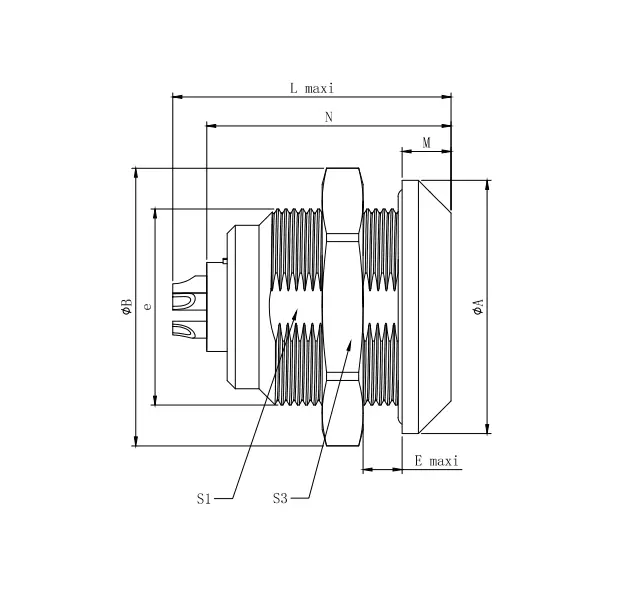

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | S1 | S3 |
| 0K | ZGG | 18 | 19.5 | M14x1.0 | 6 | 20.4 | 4.0 | 17.6 | 12.5 | 17 |
| 1K | ZGG | 20 | 21.5 | M16x1.0 | 10 | 27.2 | 4.5 | 23.2 | 14.5 | 19 |
| 2K | ZGG | 25 | 27.0 | M20x1.0 | 11 | 30.7 | 5.0 | 23.8 | 18.5 | 24 |
| 3K | ZGG | 31 | 34.0 | M24x1.0 | 10 | 36.2 | 6.0 | 33.6 | 22.5 | 30 |
| 4K | ZGG | 37 | 40.0 | M30x1.0 | 13.5 | 38.0 | 6.5 | 29.5 | 28.5 | 36 |
