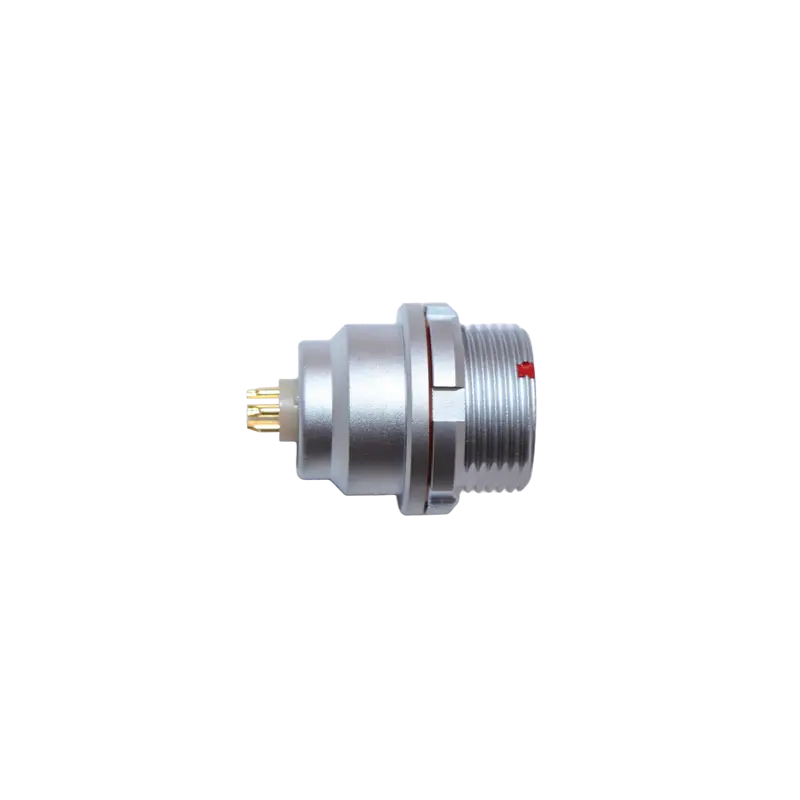

ZE外螺母固定插座

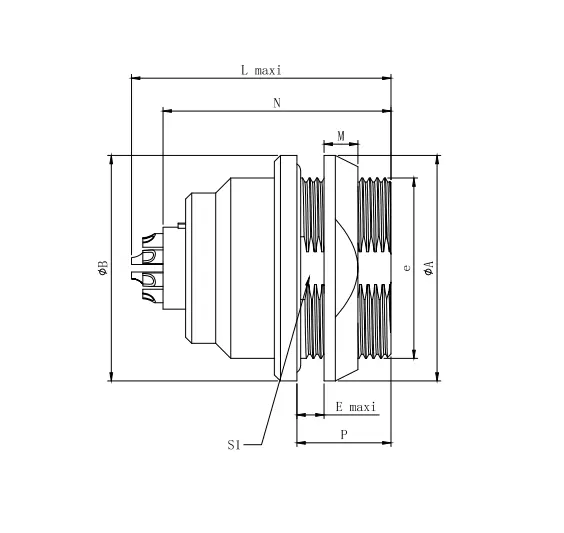

| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | P | S1 |
| 0K | ZEG | 18 | 18 | M14x1.0 | 3.5 | 21.7 | 3 | 17.8 | 7 | 12.5 |
| 1K | ZEG | 20 | 20 | M16x1.0 | 7 | 27.0 | 3 | 23.2 | 10 | 14.5 |
| 2K | ZEG | 24.8 | 24.8 | M20x1.0 | 6.5 | 30.7 | 3.5 | 28.6 | 10 | 18.5 |
| 3K | ZEG | 30 | 30 | M24x1.0 | 8.0 | 36.2 | 4.5 | 33.6 | 12.5 | 22.5 |
| 项目 | 尺寸 | |||||||||
| 系列 | 型号 | A | B | e | E | L | M | N | P | S1 |
| 0K | ZEG | 18 | 18 | M14x1.0 | 3.5 | 21.7 | 3 | 17.8 | 7 | 12.5 |
| 1K | ZEG | 20 | 20 | M16x1.0 | 7 | 27.0 | 3 | 23.2 | 10 | 14.5 |
| 2K | ZEG | 24.8 | 24.8 | M20x1.0 | 6.5 | 30.7 | 3.5 | 28.6 | 10 | 18.5 |
| 3K | ZEG | 30 | 30 | M24x1.0 | 8.0 | 36.2 | 4.5 | 33.6 | 12.5 | 22.5 |
