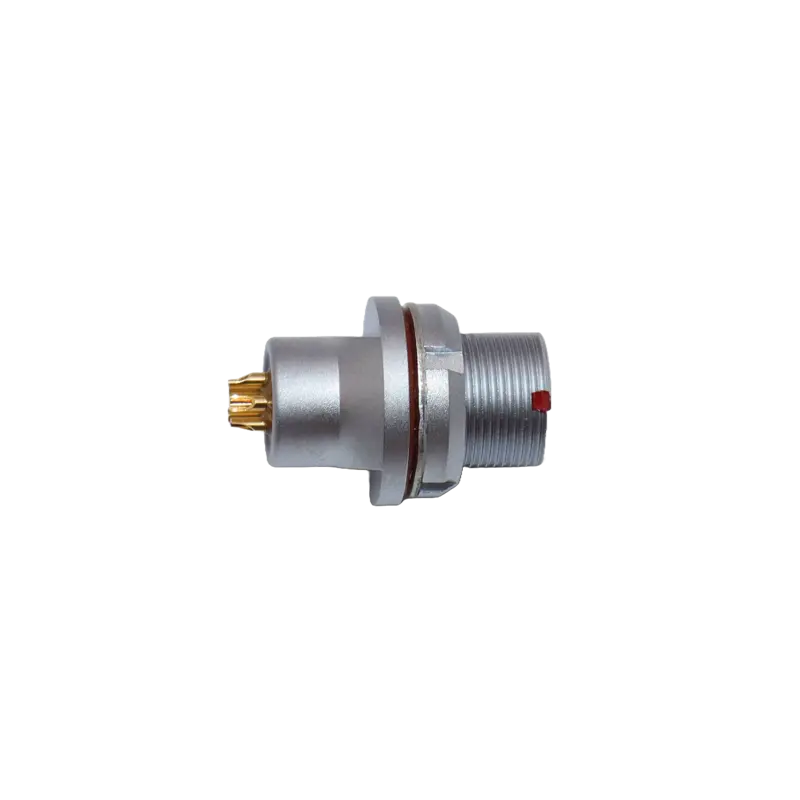

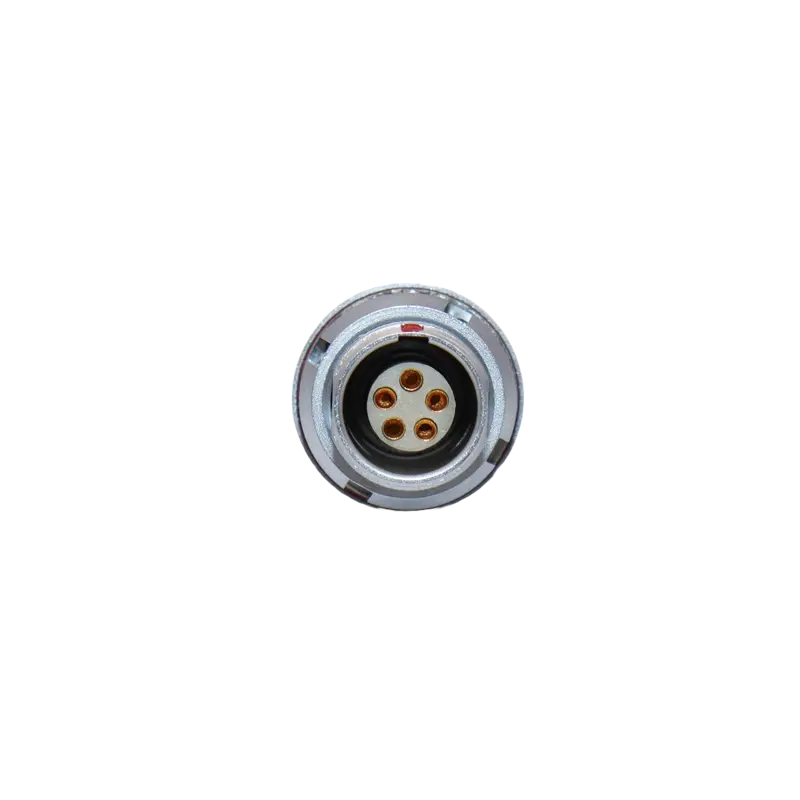

ME外螺母固定插座

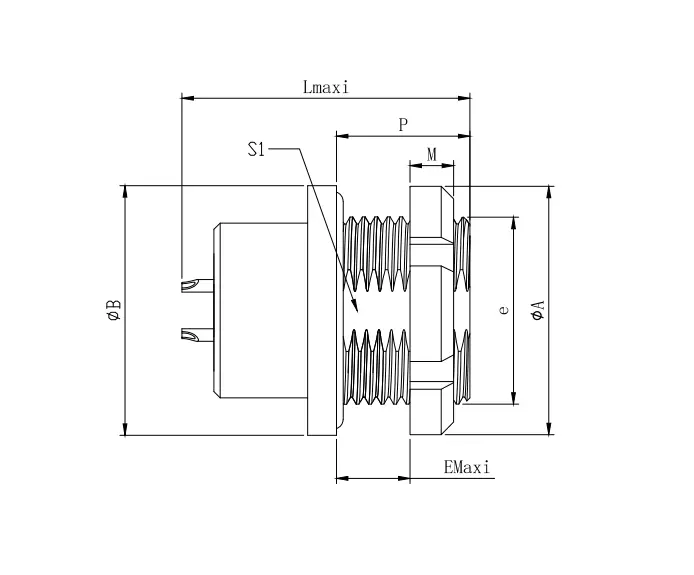

| 项目 | 尺寸 | ||||||||
| 系列 | 型号 | A | B | e | E | L | M | P | S1 |
| 00B | MEG | 10 | 11 | M7X0.5 | 3.0 | 17.0 | 2.5 | 6.5 | 6.3 |
| 0B | MEG | 12 | 13 | M9x0.6 | 5.5 | 19.3 | 2.5 | 9.0 | 8.2 |
| 1B | MEG | 16 | 18 | M12x1.0 | 4.5 | 26.6 | 3.5 | 9.0 | 10.5 |
| 2B | MEG | 20 | 20 | M15x1.0 | 4.5 | 31.6 | 3.5 | 9.6 | 13.5 |
| 3B | MEG | 24 | 24 | M18X1.0 | 9.5 | 28.7 | 4.5 | 14.5 | 16.5 |
