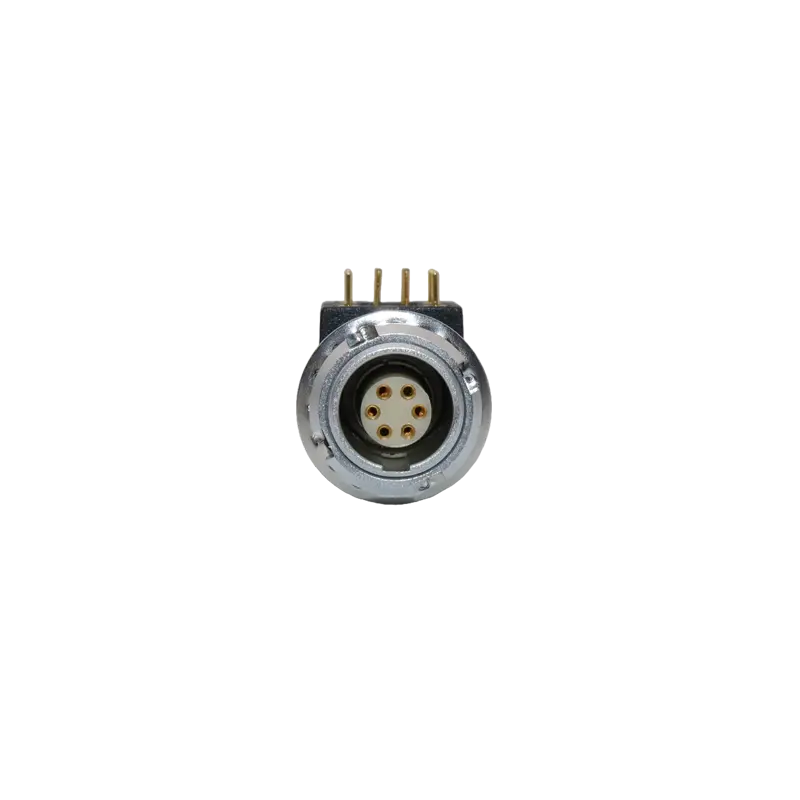

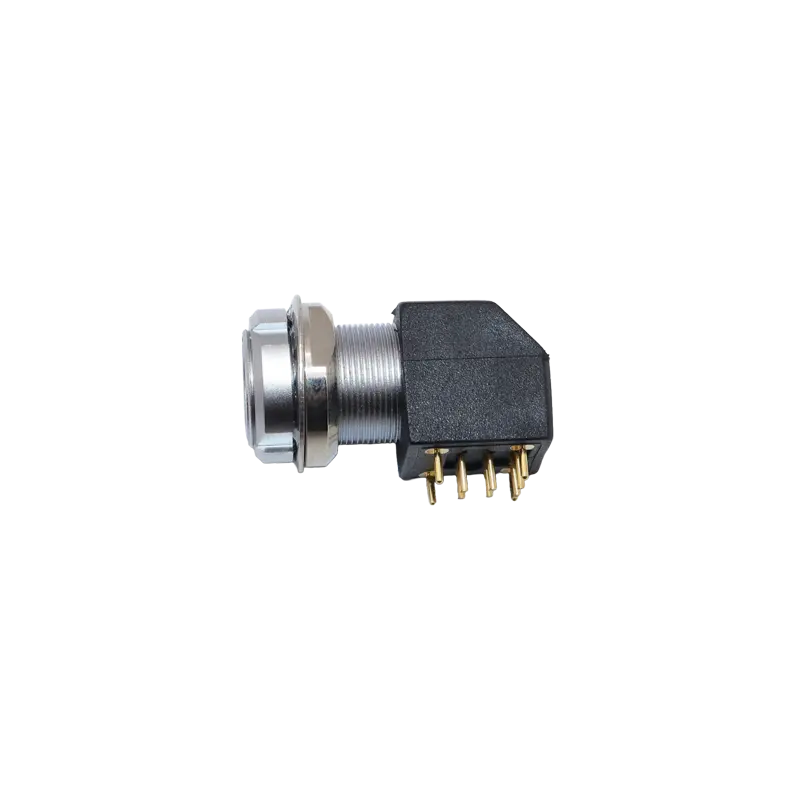

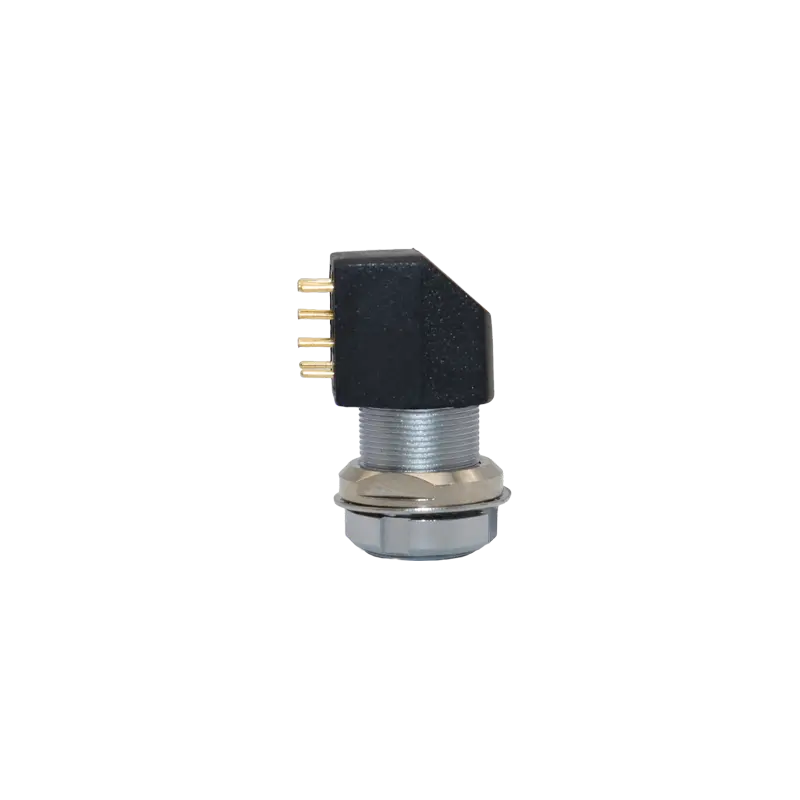

ZX双螺母弯式插座

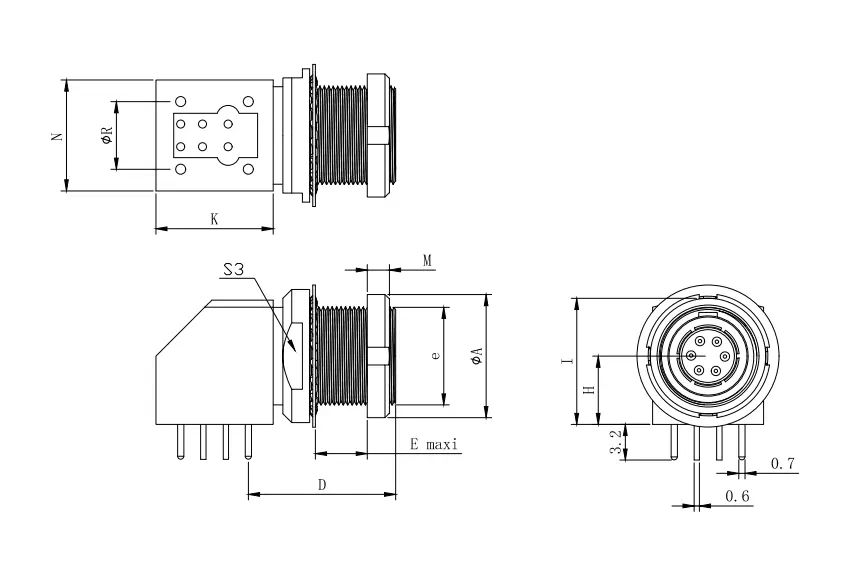

| 编号 | 尺寸 | |||||||||||
| A | D | e | E | H | I | K | L | M | N | R | S3 | |
| ZXG.0B.302.HLN ZXG.0B.303.HLN ZXG.0B.304.HLN ZXG.0B.305.HLN ZXG.0B.306.HLN ZXG.0B.307.HLN ZXG.0B.309.HLN |
12 | 14.6 | M9x0.5 | 6.0 | 6.7 | 12.7 | 13.5 | 25.0 | 2.5 | 11.7 | 7.62 | 11 |
| ZXG.1B.302.HLN ZXG.1B.303.HLN ZXG.1B.304.HLN ZXG.1B.305.HLN ZXG.1B.306.HLN ZXG.1B.307.HLN ZXG.1B.308.HLN ZXG.1B.310.HLN |
14 | 16.6 | M11x0.5 | 7.5 | 7.5 | 14.3 | 13.0 | 27.3 | 3.3 | 12.5 | 7.62 | 13 |
